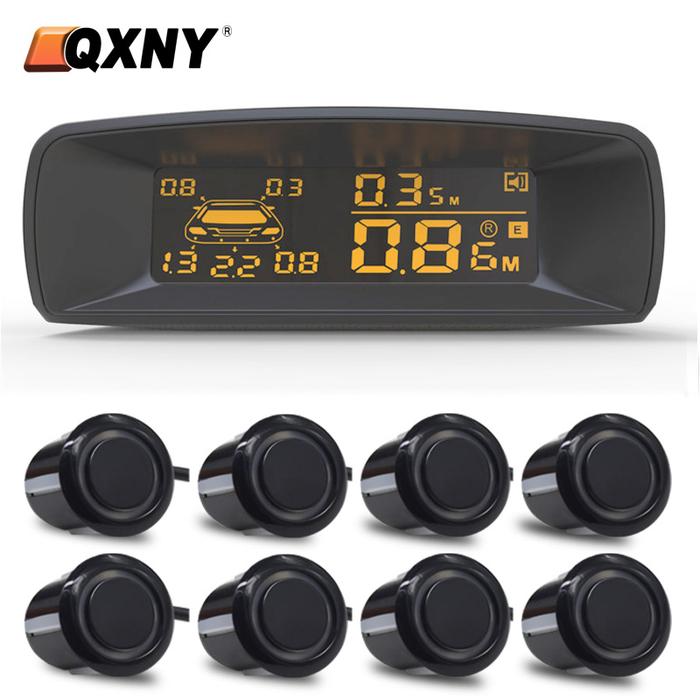

Car Backup Reversing 8 Radar Kit Auto Parking Sensor Electronics Voice Reverse Ultrasonic Assistan Sound Alert Ultrasonic

SELAMAT DATANG DI TOKO KAMI

OSD Language : English
Talk Range : car font:0.3 ~ 0.8m. Car back: 0.3 ~ 2.2m
Material Type : ABS
Model Name : NY7070-8
Type : Invisible
Brand Name : QXNY
Origin : Mainland China
Certification : CE,FCC
function : 7 Digital display, buzze alarm
Alarm volume : 70db~90db
Display type : LCD display
Features A : prevent dangerous and costly collisions
Features B : Detect small children and low walls as well.
Features C : 7 digital display obstac distance
Features D : 3 sound volume
Features E : Four kinds of sound
Features F : 8 sensors


IMPORTANT NOTICE:

We provide various sensors colors for your choice, in your purchase, please tell

us the color to the sensors If you need some special colours for the sensors, please send us the

NAME OF YOUR CHOSEN COLOURS while confirming order, then we'll try to select the closest colours

for you since we have more than 60 different colours ready. Otherwise you can choose white

sensors, and paint them to the matching finish of your car.

Product features:

1>This product adopts double digital display, obstacle distance before and after the automobile

independent display

2>The product with four voices (voice / buzzer / mute / voice + buzzer), cross cutting exchange

3>Display with 7 adjustable volume

4>Can independently display the direction of 8 obstacles

5>Full-weather design, anti-wind, anti-sand, anti-fog, anti-frost, anti-ice, anti-snow, anti-rain

sensor systems for enhanced coverage and detection.

6>Sound alarm: Heart beat type, more recent alarm more rapidly

Product parameters

1>Digital LCD display (number & light). Help to provide increased safety for passengers,

pedestrians and family members who happen to be around the moving vehicle

2>Specifications:

3>Rate voltage: 12V DC

4>Rate operating range: 10.5V - 16V DC

5>Rate current: 100mA - 300mA

6>Ultrasonic frequency: 40KHz

7>Control moudle working temperature: -30 - 80 celcius degree

8>Display working temperature: -20 - 70 celcius degree

9>Sensor diameter: 22mm

10>Installation mode: Drilling

1:The distance between the front and the left obstacle

2:The distance between the two sensors in the middle of the vehicle to detect the obstacle

3:The distance to the right front of the obstacle

4:The distance between the nearest obstacle

A is the volume decrease,
B is the sound switch button,
C is the volume increase
