4K 8MP 360X Zoom IP Camera IVM4200 P2P ONVIF IMX415 SD 256GB IP Camera

Brand Name : IMPORX
Color : black
Origin : Mainland China
Installation : Side
Certification : CE,FCC,RoHS
Digital Zoom : other
Optical Zoom : other
Operating Temperature : -10-60
Sensor : CMOS
Style : Box Camera
Shell Material : Metal
is_customized : Yes
Sensor Brand : Sony
High Definition : 8.0 Megapixels
Megapixels : 8MP
Scene : Indoor and outdoor
Connectivity : IP/Network Wired
Lens (mm) : 3.6mm
Viewing Angle : 87
Minimum Illumination(Lux) : 0.001LUX
Video Compression Format : H.264,H.265
Alarm Action : Email Photo,Local Alarm
Supported Mobile Systems : Android,IOS
Supported Operating Systems : Windows 7,Windows 8,Windows 10
Power Supply(V) : DC12V
Power Consumption(W) : 8W
Dimensions (L x W x D)(mm) : 2.5inch
Audio Output : 1CH BNC
Storage : 256GB
Power Supply : Normal
TF Card : None
Movement Range(Tilt) : other
Movement Range(Pan) : 0-360
Rechargeable Battery : Built in
Rechargeable Battery Capability : other
IP Rating : other
App name : other
Color Night Vision : no
AI Functions : Human Detection
Hign-concerned Chemical : None


4K 8MP IP Camera adopts highly integrated
MSTAR338Q+IMX415 processor, extremely low power consumption and strong
stability; supports H.265 compression algorithm to ensure image quality while
effectively reducing network bandwidth occupation; powerful network function,
support standard Support Hikvision protocol, and compatible with iVMS-4200,
support RTSP, RTMP and other protocols, support alarm picture upload FTP
server, alarm picture to E-Mail, support mobile phone remote monitoring;

High
sensitivity, high signal-to-noise CMOS image sensor

Using the
MSTAR338Q processing chip+ IMX415 CMOS

The
highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)

H.265
compression algorithm, effectively reducing network bandwidth, supporting dual
stream, supporting mobile phone monitoring

Support
humanoid recognition to trigger SD card recording, SD card capture, voice
alarm, message push, email alarm and other functions.

support
fog function, support WDR, HDR. Support strong light suppression function.

Support
humanoid recognition and humanoid alarm

Support multiple
network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP,
DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

Support
ONVIF protocol,Hikvision protocol

Support
for manufacturer dynamic domain name and third-party dynamic domain name
resolution

Support
alarm picture sending E-Mail

Support
alarm picture upload FTP server

Support
alarm sound outputs

Support
timing capture pictures to FTP server

Support
static IP, also support dynamic IP (DHCP)

Support
P2P plug and play

Support
IE, Google, Firefox browser

Supports
up to 6 users to browse at the same time (3 users per stream)

Provide
motion detection (area, sensitivity can be set) alarm function

Support
UPNP automatic port mapping

Support
Micro SD card function, support up to 256GB Micro SD card

Support
PC client to download SD card video

Support
mobile phone download and playback SD card recording

* This is
a professional camera, please use a computer or NVR connection to use it. Of
course, it also supports mobile APP connection, but the mobile APP can only
realize some simple functions.

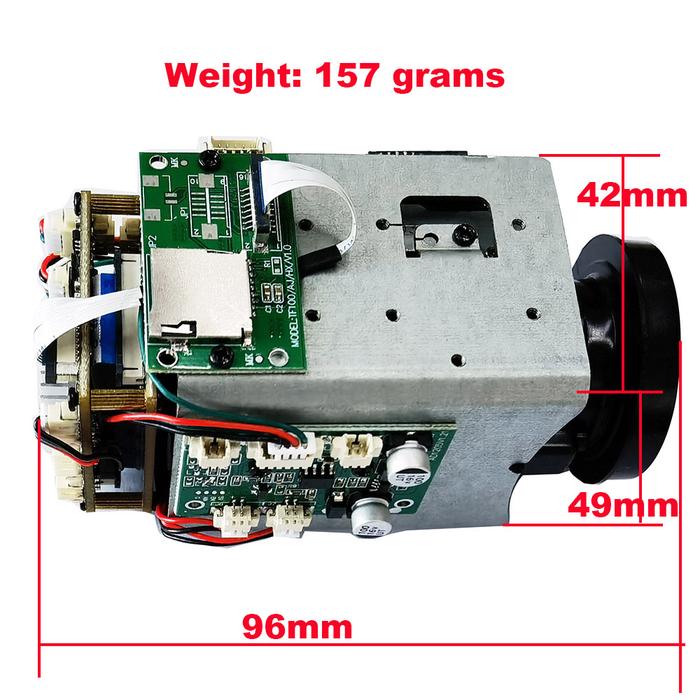

*Caution:This
camera is a DIY semi-finished product.Without a casing, all components and
wiring are exposed, and it is easy to cause the camera to malfunction due to
improper operation.Buying a DIY semi-finished camera requires the buyer to have
a certain hands-on ability and basic knowledge of electronic circuits.If you
don't know anything, please don't buy it.We provide buyers with a full range of
technical support.Of course buyers don't need to worry, If a component fails,
we will provide you with a replacement service.And provide long-term technical

Model:IMP-22800K-360

Operating system

embedded LINUX

Main processor

MSTAR338Q

Image Sensor

SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor

Day and night mode

Support

Compression standard

Compression standard

Video compression algorithm supports H.265, H.264 High
Profile, H.264 Main Profile and H.264 Baseline

Audio compression algorithm

G.726/G.711/AAC

Compressed transport stream

512Kbps-12288bps, can be customized,

Images

Maximum image size

8MP (3840*2160)

Sharpness

Special function

First stream:4K 8MP (3840*2160),3072*1728

2592*1944

2560*1440

2304*1296

1080P,720P

support fog function, support WDR, HDR. Support strong light suppression
function.

Second stream
720*480


VGA,640*360,480*360,CIF

Video frame rate

8mp 20fps,3072*1728

2592*1944

2560*1440

2304*1296

1080P,720P30fps

Character overlay

Support OSD name,time and date information overlay

Image settings

Brightness, contrast, saturation, exposure, up and down
reverse, left and right mirroring adjustable

NetworkNetwork

Function

Storage function

Supports up to 256G Micro SD card storage and supports
scheduled video storage

Motion detection

Four independent
