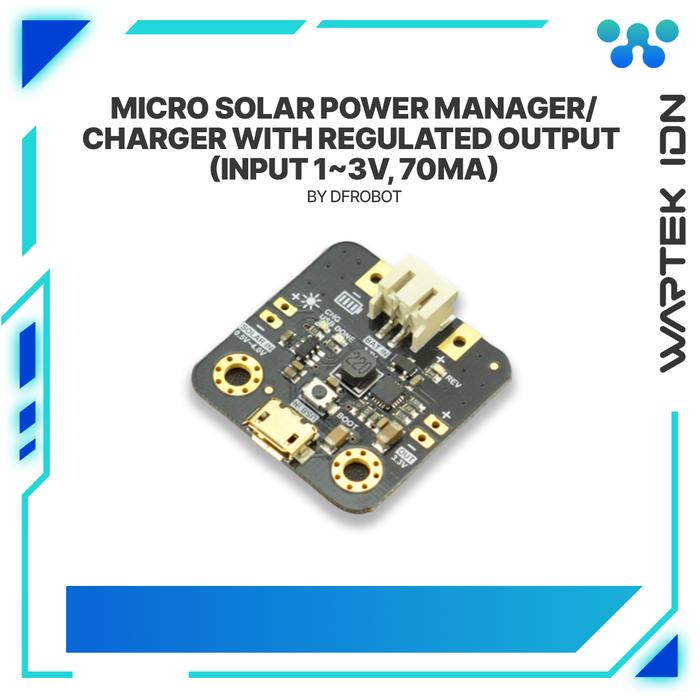

Micro Solar Power Manager / Charger with Regulated Output (Input 1~3V, 70mA) By DFRobot

Micro Solar Power Manager / Charger with Regulated Output (Input 1~3V, 70mA) By DFRobot
CCC-083

Micro solar power manager merupakan modul manajemen tenaga surya yang mendukung algoritma MPPT dan memiliki keluaran yang stabil. Ini kompatibel dengan panel surya kecil mulai dari 1V hingga 3V. Pengisi daya tenaga surya yang dilindungi baterai ini dirancang khusus untuk memberi daya pada sensor atau pengontrol nirkabel berdaya rendah dalam sistem IoT.

Aplikasi
- Jaringan Sensor Nirkabel Berdaya Rendah
- Lokalisasi Suar Bluetooth
- Miniatur Mainan Bertenaga Surya

Spesifikasi
Micro Solar Power Management Module
- Solar Power Management IC: SPV1050
- Solar Input Voltage (SOLAR IN): 0.5V~4V
- Battery Input (BAT IN): 3.7V Lithium Battery
- Maximum Charge Current: 100mA@USB IN；70mA@SOLAR IN
- Over-charge Protection Threshold: 4.2V
- Over-discharge Protection Threshold: 3.1V
- Regulated Power Supply: 3.3V 90mA@BAT IN 3.7V
- Quiescent Current: - Protection Functions
BAT IN: Over-discharge/Over-charge/Reverse Connection Protections
OUT: Short Circuit/Over Current Protections
- Operation Temperature: -40℃～85℃
- Dimension: 30.0mm*30.0mm

Solar Panel 2V 160mA
- Nominal Voltage (VMP): 2V
- Nominal Current (IMP): 160mA
- Open Circuit Voltage (IOC): 2.4V
- Short Circuit Current (ISC): 190mA
- Solar Cell Material: Monocrystalline Silicon
- Other Features: Waterproof, Oil Resistant and Corrosion Resistant
- Dimension: 50mm*50mm

Isi Produk
1x Solar Power Manager Micro
1x Monocrystalline Silicon Solar Panel 2V 160mA 50*50mm
2x Red Single Conductor Wire 15cm 24AWG
2x Black Single Conductor Wire 15cm 24AWG
1x PH2.0-2P Male Power Wire 15cm
2x XH2.54-2P Header
