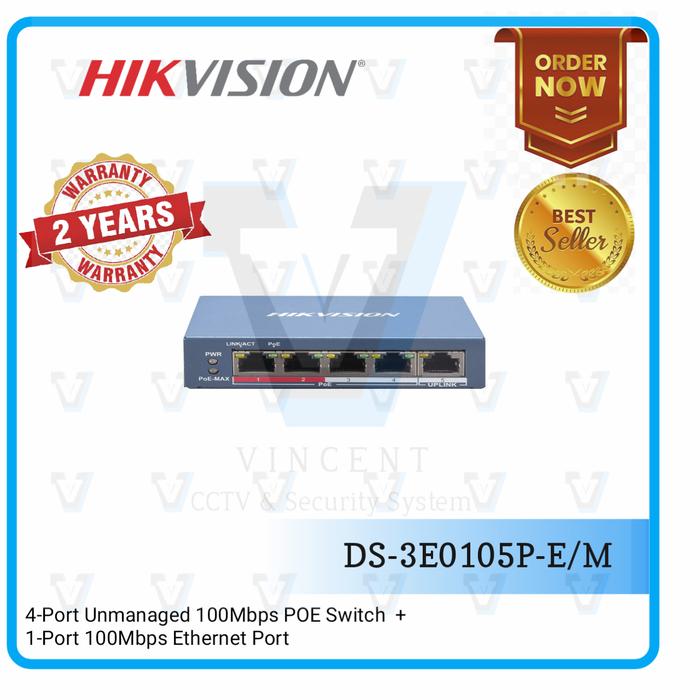

Hikvision DS-3E0105P-E/M 5 Port 10/100 unmanaged PoE Switch

DS-3E0105P-E/M
NEW Unmanaged PoE Switch

• Ports 1 to 4 support IEEE 802.3af standard.
• When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters.
• All ports support 6 kV lightning protection.
• This switch supports Auto MDI/MDIX.
• This switch supports store-and-forward.
• This switch supports MAC address auto learning and auto aging.
• This switch supports smart cache optimization.
• This switch supports desktop / wall mounting.

SPESIFICATION :

• Port amount:5
• Port type:RJ45, 10/100 Base-T(X)
• Standard:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding method:Store-and-forward
• Flow control:Back-pressure flow control in IEEE 802.3x full duplex
• Priority queue:2
• MAC address table:1 K
• QoS:Supported on ports 1 and 2.
• Switching capacity:1 Gbps
• Packet forwarding rate:0.744 Mpps
• Appearance:0.6 mm sheet of galvanized metal without electric fan
• Weight:0.141 kg
• Dimension:100 mm × 100 mm × 26 mm
• Mounting type:Desktop / wall mounting
• Operating temperature:(0 - 40) °C
• Storage temperature:(-40 - 70) °C
• Operating humidity:(10 – 90) % RH, non-condensing
• Storage humidity:(5 – 90) % RH, non-condensing
• Power input:48 V DC, 0.8 A
• Reverse connection protection:Supported
• Power consumption: 38 W
• LED indicator: Link/Act LED indicators, PoE LED indicator,Power LED indicator
