GEPRC Cinelog35 v2 HD DJI O3 cinematic drone 45A 4-6s GPS PNP no Rx

GEPRC Cinelog35 analog cinematic drone 45A 4-6s PNP no Rx


++ Untuk pemula tidak usah khawatir akan disupport full teknis sampai bisa seting dan terbang (DIJAMIN)
++ Free konsultasi teknis & sharing (lifetime after sales and technical support)
++ Free konsultasi & referensi untuk upgrade part atau yang lainnya

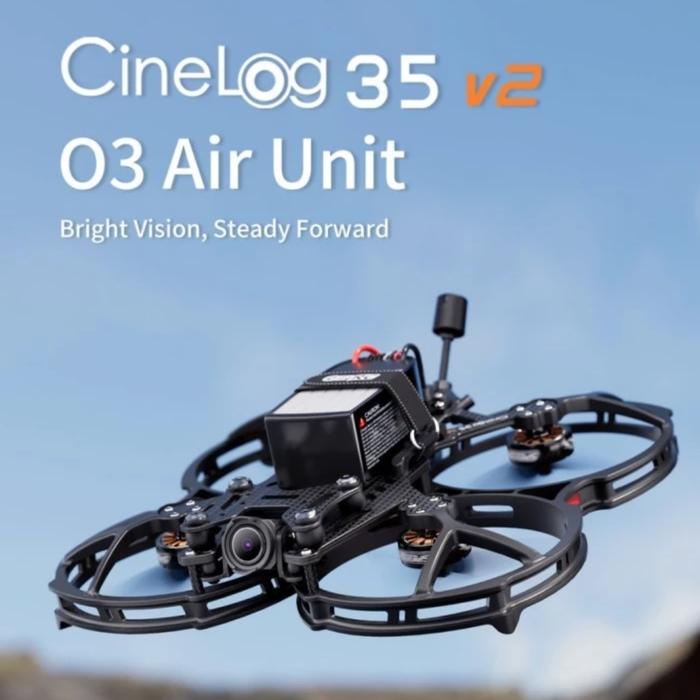

GEPRC CineLog35 V2 HD O3 FPV Drone with GPS

Specifications

Model: Cinelog35 V2 HD O3
Frame: GEP-CL35 V2
Wheelbase: 142mm
Gimbal plate: 2.0mm
Top plate: 3.5mm
Bottom plate: 1.5mm
FC system: GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: O3 Air Unit
Camera: O3
Antenna: 5.8G&2.4G
Motor: SPEEDX2 2105.5-2650KV (6S)
Propeller: HQProp D-T90MM
GPS: GEP-M8U
CineLog35 V2 HD O3 TBSNanoRX weight: 285.8g
Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX
Recommended battery: LiPo 1050mah-1300mah
Flight time: 5′00″ -8′ 30″

Includes

1 x Cinelog35 V2 HD O3

2 x HQProp D-T90MM（2 pairs）

2x M20*250mm battery strap

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M5 wrench

1 x plastic tweezers

1 x Antenna fixed tube (pair)

1 x Keychain

1 x GP Camera Mounting Base

1 x Naked GP Camera Mounting Base

1 x Antenna Mounting Base

Screw package includes:

2x cup head screws M2*18

2x round head screws with pad M2*5.5

1x round head screws M2*12

2x Rivet nut M2

4x round head screws M2*8

4x round head screws M2*7

4x round head screws M2*6

2x round head screws M2.5*6

2x hexagonal screw M1.6*8

1x Flange nuts M5

2x Press Rivet Nuts_Brass color M2*1.9-OD4.9

2x Iron nut M2

2x Iron nut M2

2x Camera gimbal shock absorbing rubber

Tips: GPS Rescue 4.4 | Betaflight：https://betaflight.com/docs/wiki/archive/GPS-Rescue-v4-4
