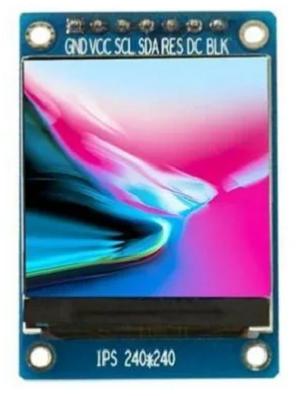

LCD OLED 1.3 INCH ST7789 TFT IPS 240x240 DISPLAY MODULE FULL COLOR - SOLDER
Rp43.000
Pilih jenis: SOLDER
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: FEATURED
LCD 1.3 INCH ST7789 TFT IPS 240x240 DISPLAY MODULE FULL COLOR SCREEN
++ PRODUK BERGARANSI, TAPI TIDAK MENERIMA KOMPLEN PRODUK YG SUDAH DIMODIFIKASI +++
Library:
https://github.com/cbm80amiga/Arduino_ST7789_Fas
Tutorial:
https://youtu.be/fJEbSpMrLGA
Spesifikasi:
============================
SIZE 1.3inch
Working Voltage : 3.3V
Display Mode Normally black IPS
Display Format Graphic 240*240 RGB
Input Data SPI interface
Drive IC ST7789VW
Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution 240RGB*240 Dots
LCD Active area 23.4 (W)*23.4 (H)
Dot pitch 0.0975(H) x 0.0975(V) mm
Viewing Direction All View
Operating Temperature -20 s/d 70C
++ PRODUK BERGARANSI, TAPI TIDAK MENERIMA KOMPLEN PRODUK YG SUDAH DIMODIFIKASI +++
Library:
https://github.com/cbm80amiga/Arduino_ST7789_Fas
Tutorial:
https://youtu.be/fJEbSpMrLGA
Spesifikasi:
============================
SIZE 1.3inch
Working Voltage : 3.3V
Display Mode Normally black IPS
Display Format Graphic 240*240 RGB
Input Data SPI interface
Drive IC ST7789VW
Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution 240RGB*240 Dots
LCD Active area 23.4 (W)*23.4 (H)
Dot pitch 0.0975(H) x 0.0975(V) mm
Viewing Direction All View
Operating Temperature -20 s/d 70C
