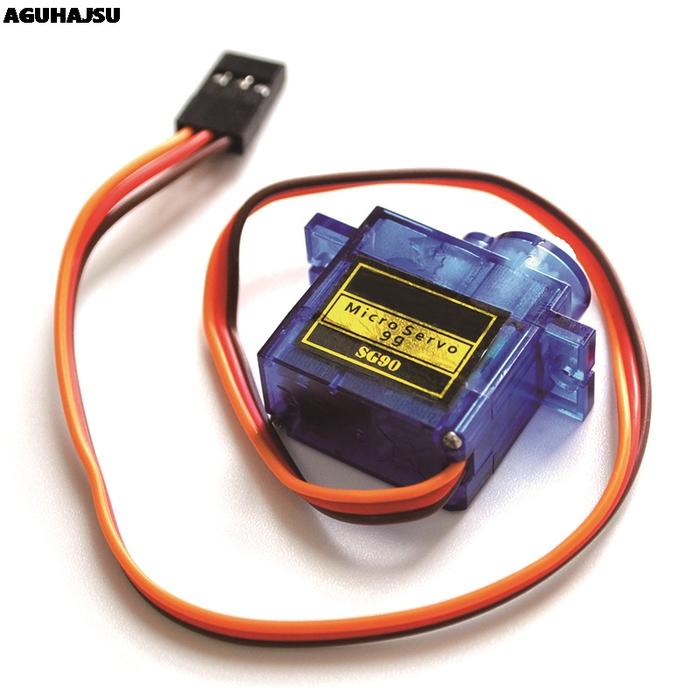

Official Smart Electronics Rc Mini Micro 9g 1.6KG Servo SG90 for RC 250 450 Helicopter Airplane Car Boat For Arduino DIY

Selamat Datang Di Toko Kami Semua Barang PreOrder 40 Hari Selamat Belanja Package : SMD is_customized : Yes Model Number : SG90 Operating Temperature : standard Dissipation Power : standard Supply Voltage : 4.8-7.2V Application : Computer Condition : New Type : Voltage Regulator Brand Name : SISJQRR Origin : Mainland China product description: Red: pressure-wire Brown: Ground lead Orange:signal wire Model: SG90 Technical data given by the manufacturers: Size: 21.5mmX11.8mmX22.7mm Weight: 9 grams No-load speed: 0.12 seconds / 60 degrees (4.8V) Stall torque of 1.2 - 1.4 kg / cm (4.8V) Operating temperature: -30 to +60 degrees Celsius Dead-set: 7 microseconds Operating voltage: 4.8V-6V The control of the steering gear generally requires a time base pulse of about 20 ms. The high level portion of the pulse is generally an angle control pulse portion in the range of 0.5 ms to 2.5 ms, with a total interval of 2 ms. Taking the 180 degree angle servo as an example, the corresponding control relationship is this: 0.5ms--------------0 degrees; 1.0ms------------45 degrees; 1.5ms------------90 degrees; 2.0ms-----------135 degrees; 2.5ms-----------180 degrees;
