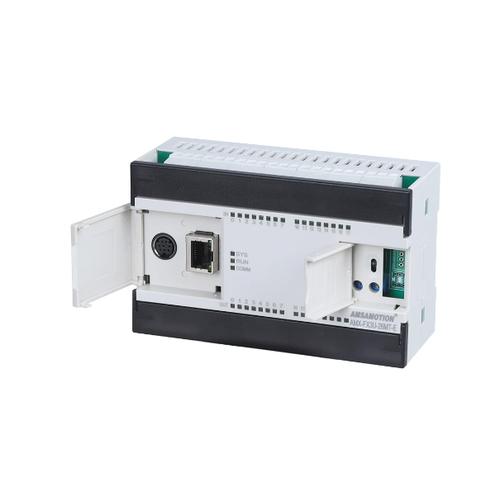

PLC AMX-FX3U-26MR Compatible Mitsubishi MELSEC 2AI/1AO 16DI/10DO - FX3U-26MT-E

PLV VARIANT :

FX3U-26MR-E Relay 16DI/10DO, 2AI/2AO Ethernet Port
FX3U-26MT-E Transistor 16DI/10DO, 2AI/2AO Ethernet Port
FX3U-26MR Relay 16DI/10DO, 2AI/2AO No Ethernet port
FX3U-26MT Transistor 16DI/10DO, 2AI/2AO No Ethernet port
FX3U-48MR Relay 24DI/24DO, 2AI/1AO No Ethernet port

Origin : CN(Origin)
Model Number: AMX-FX3U-26MR
PLC
Input Port : 16
Output Port : 10
Analog Input : 2
Analog Output : 1

Specification:

Item Type: PLC Programmable Controller

Material: Plastic
Model: AMX‑FX3U‑26MR‑E
Digital Input:
Input Points: 16
Input Signal Type: Switch contact signal or level signal, support positive and negative trigger
Input Signal Voltage: DC 18~28V
Insulation Circuit: Optocoupler isolation
Digital Output:
Output Points: 10
Output Type: Relay
Contact Capacity: 30VDC/5A, 250VAC/5A
Insulation Circuit: Mechanical insulation
Analog Input/output:
Input Points: 2
Input Type: Voltage/current, DIP switch switch input type
Input Range: DC0‑10V/0~20ma
Conversion Accuracy: 12 bits
High‑Speed Counter:
Input Points: 6 (X0‑x5) phases, 2 AB phases
Pulse Frequency: Single‑phase 4 channels 100K (x0‑x3), 2 channels 40 K (x4‑x5)
Input Signal Voltage: DC 18~28V
Communication Interface:
RS485: 1 channel, support FX3U PLC communication protocol
RS422: 1 channel, support uploading and downloading, monitoring
RJ451: 1 channel, 10/100Mbps communication rate, support for FX3U built‑in TCP/IP protocol
Power Supply:
Power Supply: DC24V, terminal access; with anti‑reverse connection protection
Power Consumption: 2W~4W
Surge Protection: 600W
Installation Method: Approx. 35mm / 1.4in DIN rail
Working Temperature: 0℃~+50℃ (no freezing)
Working Humidity: 10~80%RH (no condensation)

Package List:
1 x PLC Programmable Controller
