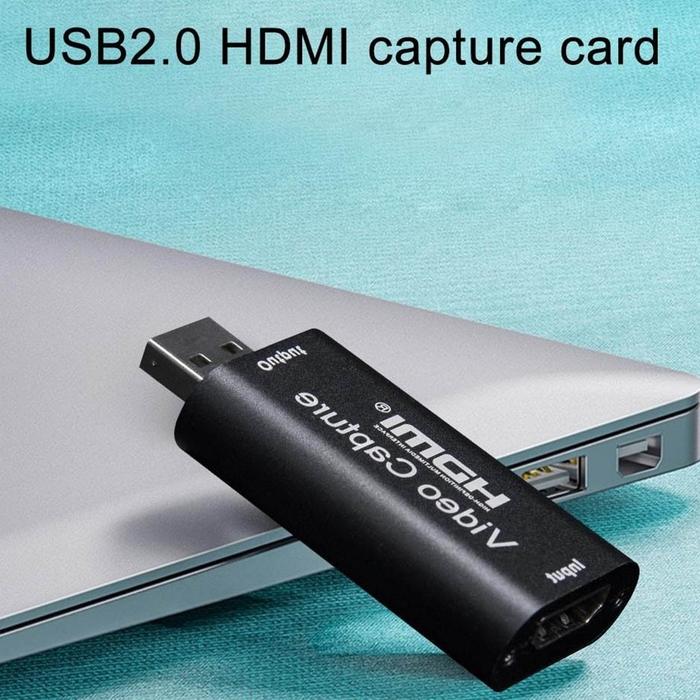

【Introduction】 The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
【Features】 ● Support input max resolutions 3840x2160@30Hz; ● Support output max resolution 1920x1080@30Hz; ● Support 8/10/12bit deep color; ● Support AWG26 HDMI standard cable: input up to 15 metes, (1080P and below resolution); ● Support most acquisition software, such as VLC, OBS, Amcap, etc; ● Support Windows, Android and MacOS; ● Conform to USB Video and UVC standard; ● Conform to USB Audio UAC standard; ● Without external power supply, compact and portable;
【Specifications】 HDMI resolution: Max input can be 3840x2160@30Hz Support video format: 8/10/12bit Depp color Video output formal: YUV, JPEG Video output resolution: Max output can be 1920x1080@30Hz Support audio format: L-PCM Input cable distance: ≤15m, AWG26 HDMI standard cable Max working current: 0.4A/5VDC Operating Temperature range: (-10 to + 55°C)
