EBC-A40L high current lithium battery iron lithium ternary power batte

Product Description

EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions.
This model default 220V power supply, If need 110V power supply, please contact me. Thank you!
Product Parameter
Model: EBC-A40L
Voltage range: charge 0-5V, discharge 0-5V
Voltage accuracy: 0.2% ± 0.03V
Current range: charge 0.1-40A, discharge 0.1-40A
Current accuracy: 0.2% ± 0.01A
Discharge mode: CC constant current discharge / CP Constant power
Discharge termination: time / voltage is lower than the set limit / Manual
Discharge power: maximum 200W
Charge mode: CV constant current constant voltage charging
Charge termination: constant current is less than the set limit / Manual
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Cooling method: fan active cooling
Equipment Supply: 220VAC

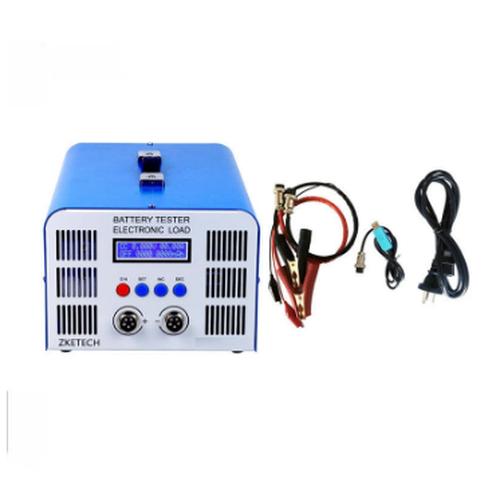

Package Include:
1x tester
1xOnline line
1x test lines
1xpower cord
