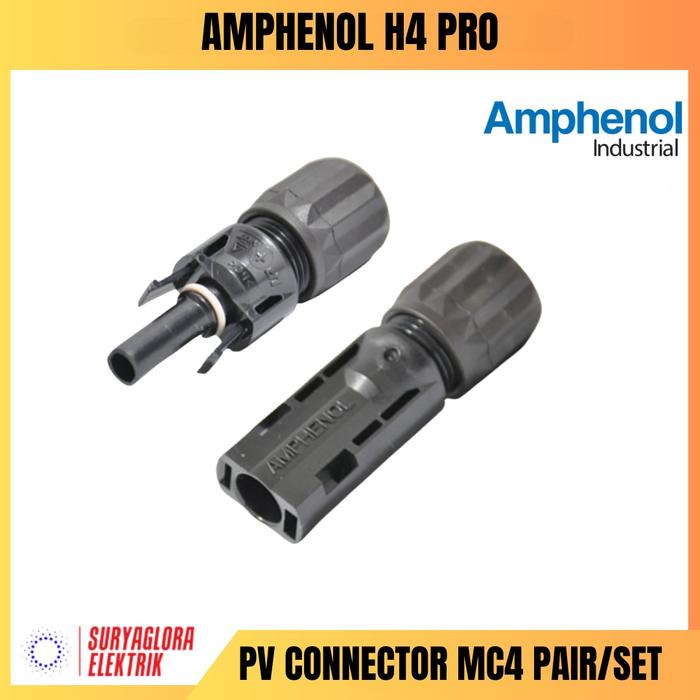

Amphenol H4 Pro MC4 Konektor PV Connector Solar H4Pro H4-Pro

The H4 PRO PV Connector by Amphenol Industrial Operations is the ultimate solution for high-performance, long-lasting solar installations. Designed to deliver reliable and efficient connections, this cutting-edge product supports a wide range of photovoltaic applications. As a leader among solar connector types, the H4 PRO ensures superior energy transmission, ease of installation, and durability in even the harshest environments. Built to meet the most stringent international standards, it sets a new benchmark for safety and performance in the renewable energy sector.

Key Features
-High Voltage Rating: Certified for 1500V DC under UL6703 and IEC62852:2014+A1 standards, making it ideal for high-voltage PV systems.
-Low Resistance Contacts: ≤0.30mΩ for minimal power loss and consistently reliable performance.
-Broad Current Range:
25A for 2.5mm²/14AWG cables
41A for 4.0mm²/12AWG cables
45A for 6.0mm²/10AWG cables
-Smaller Back Cap OD: Designed to ensure compatibility with the newest, thinnest PV module frames, thereby ensuring optimal packing density.
-Environmental Protection:
IP68-rated for water and dust resistance (1 meter, 1 hour when mated).
Flame-resistant material (UL94-V0).
UV-resistant, ensuring long-term outdoor durability.
-Wide Cable Compatibility: Supports outer diameters ranging from Ø4.5mm to Ø7.8mm.
-NEC Code Compliance: No locking sleeve required, simplifying installation while maintaining safety standards.
-RoHS & REACH Compliant: Eco-friendly and free of hazardous substances.
-Compatibility: Fully integrates with the H4 connector family for flexibility in system design.
