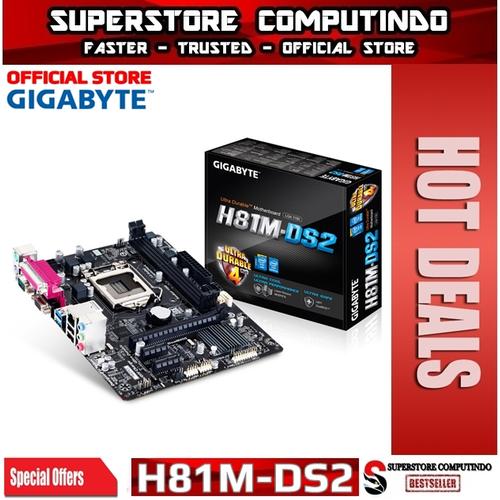

Motherboard Gigabyte GA H81M-DS2 LGA 1150 DDR3

NOTE : SEBELUM DI ORDER DIHARAPKAN DISKUSI UNTUK CHECK STOCK BARANG TERSEBUT, TERIMA KASIH ATAS PERHATIAN NYA

Feature :
Supports 4th Generation Intel Core processors
GIGABYTE Ultra Durable 4 Plus Technology
Audio Noise Guard with High Quality Audio Capacitors
GIGABYTE UEFI DualBIOS
GIGABYTE On/Off Charge for USB devices
LAN with high ESD Protection
LPT, COM, D-SUB port on rear panel
All solid capacitors design

Specification :
Prosesor
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset
Intel H81 Express Chipset

Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Antarmuka Penyimpanan
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)

USB
Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Paket Sofware
Norton Internet Security (OEM version)

Sistem Operasi
Support for Windows 10/8.1/8/7

Form Factor
Micro ATX Form Factor; 22.6cm x 17cm

Garansi Resmi 3 Tahun Gigabyte Indonesia
