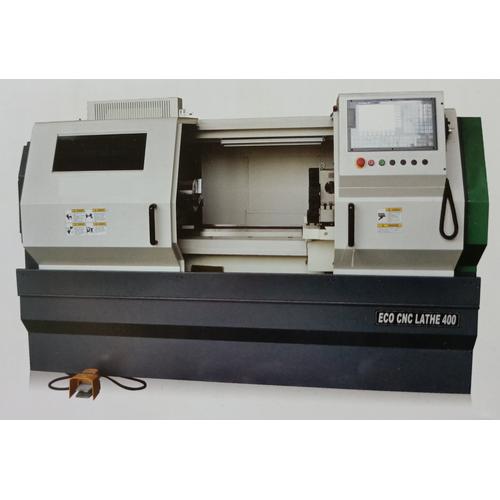

CNC Bubut CNC Lathe Mesin Bubut CNC S400
Rp99.999.999
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Bubut
Max. swing over bed : 400 mm
Max. distance between centers : 750 mm
Max. diameter of cross slide : 220 mm
Spindle bore (H/M) : 40/52 (A2-6)
Chuck size : 8 (M)
Spindle speed : 35-2500
Max. travel of X axis : 235
Max. travel of Y axis : 670 mm
Width of bed : 300 mm
Rapid feed speed X/Z : 6/8 m/min
Positioning accuracy X/Z : 0.024/0.032 mm
Repeatability X/Z : 0.01/0.013 mm
Section specificaionof tool post : 20 x 20 mm
Taper bole of tailstock quill : MT4
Main motor : 5.5 Kw
Berat : 1850 Kg
Standard Accessories :
GSK controller
Spindle with gearbox, motor dan inverter
Manual tailstock
Manual chuck
Heat exchanger
Lubrication pump
4 position tool post
Lamp
Eectronic hand wheel
Full set of wrenches
Full cover
Leveling pad
Coolant pump
NB ; HARAP KONFIRMASI (CHAT) SEBELUM DI ORDER
Max. distance between centers : 750 mm
Max. diameter of cross slide : 220 mm
Spindle bore (H/M) : 40/52 (A2-6)
Chuck size : 8 (M)
Spindle speed : 35-2500
Max. travel of X axis : 235
Max. travel of Y axis : 670 mm
Width of bed : 300 mm
Rapid feed speed X/Z : 6/8 m/min
Positioning accuracy X/Z : 0.024/0.032 mm
Repeatability X/Z : 0.01/0.013 mm
Section specificaionof tool post : 20 x 20 mm
Taper bole of tailstock quill : MT4
Main motor : 5.5 Kw
Berat : 1850 Kg
Standard Accessories :
GSK controller
Spindle with gearbox, motor dan inverter
Manual tailstock
Manual chuck
Heat exchanger
Lubrication pump
4 position tool post
Lamp
Eectronic hand wheel
Full set of wrenches
Full cover
Leveling pad
Coolant pump
NB ; HARAP KONFIRMASI (CHAT) SEBELUM DI ORDER
