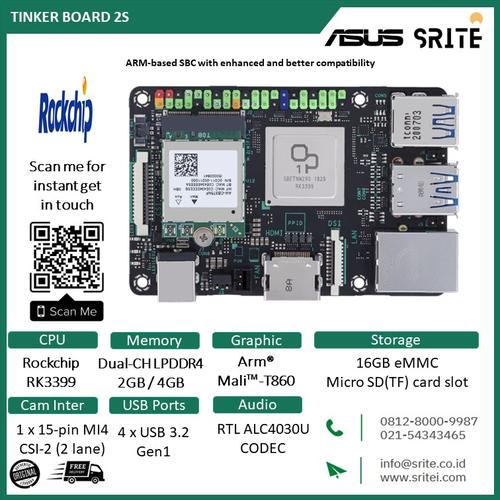

Asus Tinker Board 2S/2G/16G 90ME01P0-M0UAY0

TINKER BOARD 2S/2G/16G ['90ME01P0-M0UAY0]

Note: Garansi Resmi Distributor Indonesia

SoC Rockchip RK3399
CPU: Dual-core Arm Cortex-A72 @ 2.0 GHz, Quad-core Arm Cortex-A53 @ 1.5 GHz
GPU: Arm Mali-T860 MP4 GPU @ 800 MHz
Display: 1 x HDMI with CEC hardware ready
1 x USB Type-C (DP Alt Mode)
1 x 22-pin MIPI DSI (4 lane)
Memory Size: Dual-CH LPDDR4 2GB / 4GB
Storage: 16GB eMMC
Micro SD: (TF) card slot (push/pull)
Connectivity: 1 x RTL8211F-CG GbE LAN 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
Audio: 1 x HDMI audio output
1 x S/PDIF TX pin (from GPIO)
1 x PCM/I2S pins (from GPIO)
USB: 3 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C OTG port
Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane)
Internal Headers: 1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin Recovery header
1 x 2-pin Power-on header
1 x 2-pin Reset header
1 x 2-pin Debug UART header
1 x 2-pin DC Fan header
1 x 2-pin RTC Battery header
Power Connector: (up to 45W) 1 x 12~19V DC Power Input Jack (5.5/2.5 mm)
OS Support: Debian 9 / Android 10
Dimension: 3.37 inch x 2.125 inch (85 x 56 mm)
Environment: Operation temperature: 0℃ ~ 60℃
Non operation temperature: -40℃ ~ 85℃
Non operation humidity: 0% ~ 85% (Non condensing)
