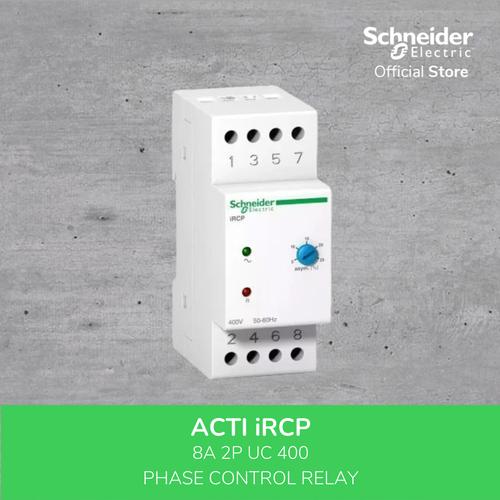

Schneider Electric PHASE CONTROL RELAY IRCP 8A 2P UC 400-A9E21180

Acti9 iRCP ini adalah relai kontrol Fase. Rentang pengukuran tegangan adalah 0,15VAC hingga 10VAC. Ketepatan tampilan adalah +/- 10% dari skala penuh. Waktu tunda saat tersandung adalah 0,3 detik.

[Specifications]
1. Range of product : Acti9
2. Product name : Acti9 iRC
3. Product or component type : Control relay
4.Device short name : iRCP
5. Device application : Phase control relay
6. Signal contacts composition : 1 C/O
7. [Ie] rated operational current : 8 A at 250 V AC (cos Phi = 1)
8. Local signalling :
- Red LED for fault
- Green LED for power on
9. Type of setting :
- Rotary knob: asymmetry
- Selected by wiring: measurement range
10. Tripping threshold : 5...25 % of Us phase asymmetry
11. Hysteresis : 5 %
12. Time delay range : 0.3 s
13. Accuracy error : +/- 10 %
14. [Us] rated supply voltage : 400 V AC 50/60 Hz
15. Power consumption in VA : 3 VA
16. Mounting mode : Fixed
17. Mounting support : 35 mm symmetrical DIN rail
18. 9 mm pitches : 4
19. Height : 88.1 mm
20. Width : 36 mm
21. Depth : 67 mm
22. Net weight : 0.21 kg
23. Colour : White
24. Connections - terminals : Tunnel type terminals (top or bottom) 6 cable(s) 1.5 mm2 rigid
25. IP degree of protection : IP20
26. Ambient air temperature for operation : -5...55 C
27. Ambient air temperature for storage : -40...80 C
