CANARE 2 4 Core Audio Signal Cable L-2B2AT+, L-2E5AT+, L-4E5AT+ Microphone XLR 6.35 3.5mm Connect Line Rack Wire Earphone Repair
Rp226.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
untuk pemilhan ukuran,warna,tipe,varian bisa dicantumkan di catatan ya kak Japan CANARE L-2B2AT+ Two-Conductor Shielded Cables (Single)
2-conductor microphone cable for general purpose audio applications.
Key Features and Benefits
* 2-conductor style construction.
* Flexible and Slim.
* Ideal for internal rack wiring.
* Cross Linked PE Insulation.
Origin: Made in China
Insulation: Cross-linked PE
Jacket: PVC
Dielectric strength: 500V AC/min.
*Capacitance between conductors
**Capacitance between conductor and shield.
L-2B2AT+
Nom.O.D.
3.2 mm
No.of conductor
2
Cross sec.area
0.18 mm²/(25AWG)
cond. comp.
16/0.12 A
Twist pitch
25 mm
Cond. DCR
10.5 ohm/100m
Nom. cap.*
66 pF/m
Nom. cap.**
120 pF/m
Key Features and Benefits / L-2B2AT+
* Ideal for internal rack wiring.
* Drain wire included.
* The L-2E5AT+ contains the Tetoron cable filler reinforcement material.

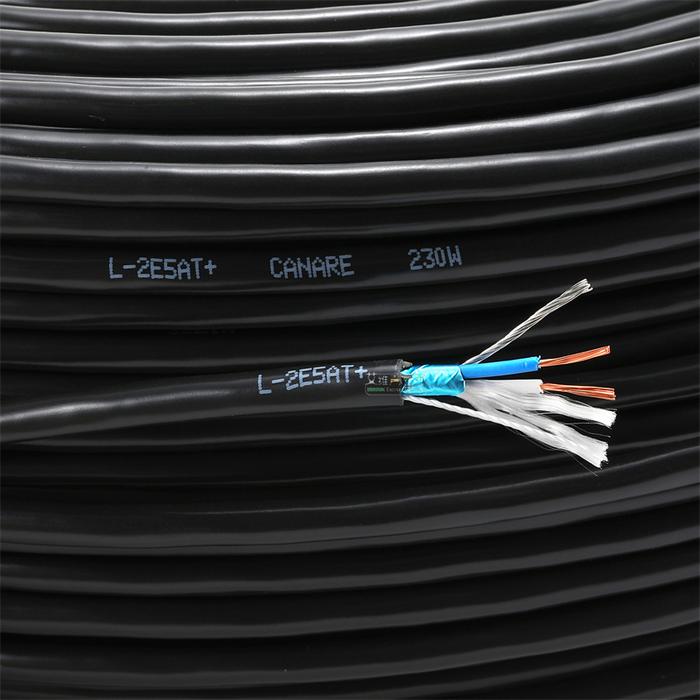

Japan CANARE L-2E5AT+ / L-4E5AT+ Microphone Audio Signal Cables
Origin: Made in China
Insulation： Cross-linked PE
Jacket： PVC
Dielectric strength： 500V AC/min.
*Capacitance between conductors
**Capacitance between conductor and shield.
Key Features and Benefits / L-2E5AT+
Ideal for internal rack wiring.
Drain wire included.
L-2E5AT+
Nom.O.D.
5 mm
No.of conductor
2
Cross sec.area
0.31 mm²/(23AWG)
cond. comp.
12 / 0.18 A
Twist pitch
30
Cond. DCR
6.2 ohm/100m
Nom. cap.*
68 pF/m
Nom. cap.**
140 pF/m
L-4E5AT+
Nom.O.D.
5 mm
No.of conductor
4
Cross sec.area
0.18 mm²/(25AWG)
cond. comp.
16/0.12 A
Twist pitch
21
Shield
AL foil
Cond. DCR
10.7 ohm/100m
Nom. cap.*
164 pF/m
Nom. cap.**
222 pF/m
The L-2E5AT+ contains the Tetoron cable filler reinforcement material.
This link is sold separately for purchase, and all of cables are in stock. You can choose to buy two-core audio cables L-2B2AT+,L-2E5AT+, L-4E5AT+.
If you want a longer cable, such as 2/ 3/4 meters, etc., then you only need to purchase the corresponding quantities of cables.
Please note that cables sold by
2-conductor microphone cable for general purpose audio applications.
Key Features and Benefits
* 2-conductor style construction.
* Flexible and Slim.
* Ideal for internal rack wiring.
* Cross Linked PE Insulation.
Origin: Made in China
Insulation: Cross-linked PE
Jacket: PVC
Dielectric strength: 500V AC/min.
*Capacitance between conductors
**Capacitance between conductor and shield.
L-2B2AT+
Nom.O.D.
3.2 mm
No.of conductor
2
Cross sec.area
0.18 mm²/(25AWG)
cond. comp.
16/0.12 A
Twist pitch
25 mm
Cond. DCR
10.5 ohm/100m
Nom. cap.*
66 pF/m
Nom. cap.**
120 pF/m
Key Features and Benefits / L-2B2AT+
* Ideal for internal rack wiring.
* Drain wire included.
* The L-2E5AT+ contains the Tetoron cable filler reinforcement material.
Japan CANARE L-2E5AT+ / L-4E5AT+ Microphone Audio Signal Cables
Origin: Made in China
Insulation： Cross-linked PE
Jacket： PVC
Dielectric strength： 500V AC/min.
*Capacitance between conductors
**Capacitance between conductor and shield.
Key Features and Benefits / L-2E5AT+
Ideal for internal rack wiring.
Drain wire included.
L-2E5AT+
Nom.O.D.
5 mm
No.of conductor
2
Cross sec.area
0.31 mm²/(23AWG)
cond. comp.
12 / 0.18 A
Twist pitch
30
Cond. DCR
6.2 ohm/100m
Nom. cap.*
68 pF/m
Nom. cap.**
140 pF/m
L-4E5AT+
Nom.O.D.
5 mm
No.of conductor
4
Cross sec.area
0.18 mm²/(25AWG)
cond. comp.
16/0.12 A
Twist pitch
21
Shield
AL foil
Cond. DCR
10.7 ohm/100m
Nom. cap.*
164 pF/m
Nom. cap.**
222 pF/m
The L-2E5AT+ contains the Tetoron cable filler reinforcement material.
This link is sold separately for purchase, and all of cables are in stock. You can choose to buy two-core audio cables L-2B2AT+,L-2E5AT+, L-4E5AT+.
If you want a longer cable, such as 2/ 3/4 meters, etc., then you only need to purchase the corresponding quantities of cables.
Please note that cables sold by
