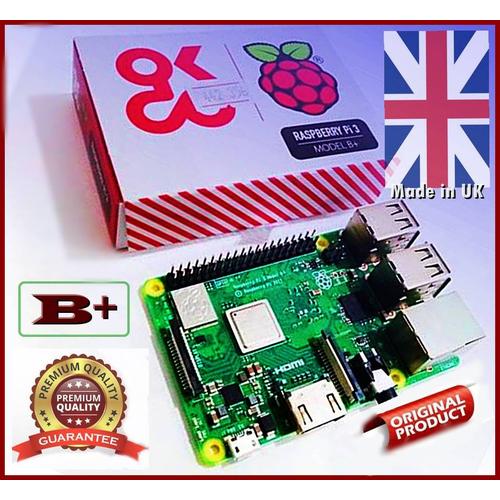

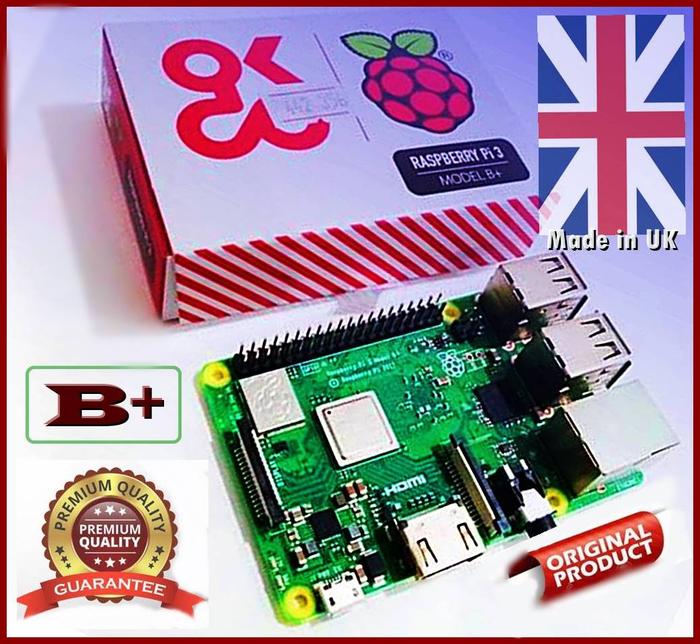

Raspberry Pi 3 Model B+ 1GB RAM (Made in UK)

Raspberry Pi 3 Model B+ 1GB RAM

Raspberry Pi 3 Model B + is the latest version of the series Raspberry Pi 3, Pi 3B + has a shape and size that is identical to the Pi 3B, however when compared with the Raspberry Pi 3 Model B, Pi 3B + increased in some parts of the hardware, ranging from processors 64- bits which now has a clockspeed maximum of 1.4 GHz (previously 1.2 GHz at Pi 3B), has Gigabit Ethernet (support PoE), which of course is much faster than previous versions, has a heatsink on the processor to the heat distribution better, and supports dual band WLAN 5 GHz and 2.4 GHz.

Note : To be able to use the features required PoE PoE module HAT

Specification:

SoC: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit @ 1.4GHz
RAM: 1 GB LPDDR2 SDRAM
WLAN: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth: Bluetooth 4.2, BLE
Ethernet: Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
GPIO: 40 pin
Display Output: HDMI
USB: 4 USB 2.0
Interface: CSI, DSI, 3.5 mm audio jack
Storage: Micro SD
Power Supply: 5V / 2.5A DC
Operating System: Linux Based (Raspbian, Ubuntu Mate, OSMC, LibreELEC, etc.)

Document

Download Operating System
Schematic
Drawing

Products Contents
1x Raspberry Pi 3 model B+
