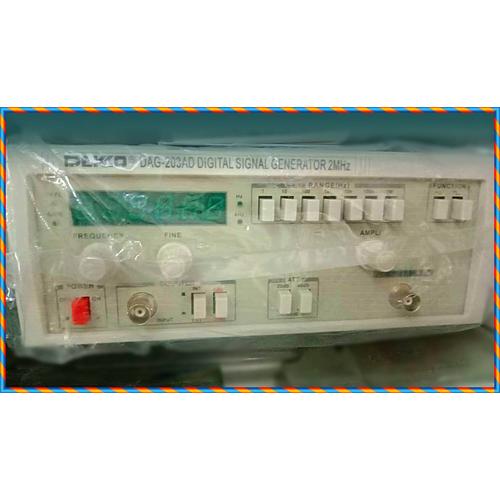

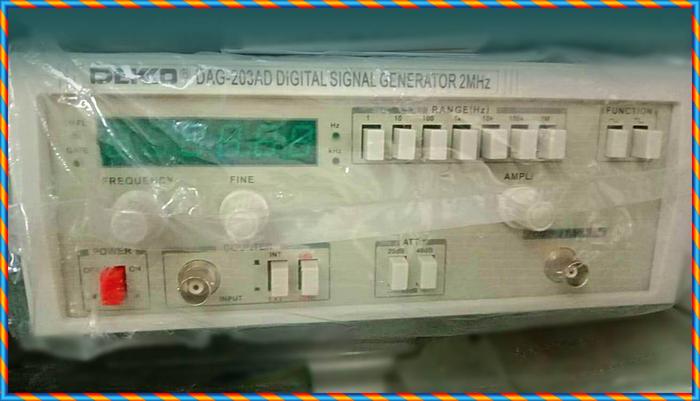

Dekko DAG-203AD Digital Signal Generator
Rp4.900.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Tools
Dekko DAG-203AD Digital Signal Generator is highly stable multipurpose broad
bandwidth signal generator, which can directly generates Sine and Square waveforrn
with maximum frequency upto 15MHz.
Frequency meter function is included for testing internal and external signal up to 30Mz.
It is a perfect product for electronic circuit and pulse circuit educating or researching.
I. Specifications
1. Frequency Range: 0.1Hz-15MHz in 7 ranges
2. Waveform: Sine and Square
3. Output Amplitude: not less than 20Vp-p (open circuit), not less than 10Vp-p (with 50 Ohm load)
4. Output Attenuator: 0dB, 20dB, 40dB, 60dB
5. Rising & Falling Edge of Square: not more than 35ns
6. Distortion of Sine: less than 1% (10Hz-100KHz)
7. Frequency Response of Sine: ±0.3dB( ≤100KHz); -3dB ( 100KHz --15MHz)
8. Frequency Meter:
a) Measuring Range: 1Hz-30MHz(Max. 30MHz)
b) Input Impedance: IMΩ/ 20pF
c) Sensitivity: 100mVrms
d) Max Input: 150V AC+DC(with attenuator)
e) Input attenuator: 20dB, 0dB
f) Measuring Error: not more than 3x0.00001 ±1 digit
9. Power Supply
a) Voltage: AC 220V ± 10% (110V ± 10% Optional)
b) Frequency: 5011 ± 2Hz
c) Power Consumption: 25VA
10. Operating Ambient:
a) Temperature: 0°C-40°C
b) Humidity:
bandwidth signal generator, which can directly generates Sine and Square waveforrn
with maximum frequency upto 15MHz.
Frequency meter function is included for testing internal and external signal up to 30Mz.
It is a perfect product for electronic circuit and pulse circuit educating or researching.
I. Specifications
1. Frequency Range: 0.1Hz-15MHz in 7 ranges
2. Waveform: Sine and Square
3. Output Amplitude: not less than 20Vp-p (open circuit), not less than 10Vp-p (with 50 Ohm load)
4. Output Attenuator: 0dB, 20dB, 40dB, 60dB
5. Rising & Falling Edge of Square: not more than 35ns
6. Distortion of Sine: less than 1% (10Hz-100KHz)
7. Frequency Response of Sine: ±0.3dB( ≤100KHz); -3dB ( 100KHz --15MHz)
8. Frequency Meter:
a) Measuring Range: 1Hz-30MHz(Max. 30MHz)
b) Input Impedance: IMΩ/ 20pF
c) Sensitivity: 100mVrms
d) Max Input: 150V AC+DC(with attenuator)
e) Input attenuator: 20dB, 0dB
f) Measuring Error: not more than 3x0.00001 ±1 digit
9. Power Supply
a) Voltage: AC 220V ± 10% (110V ± 10% Optional)
b) Frequency: 5011 ± 2Hz
c) Power Consumption: 25VA
10. Operating Ambient:
a) Temperature: 0°C-40°C
b) Humidity:
