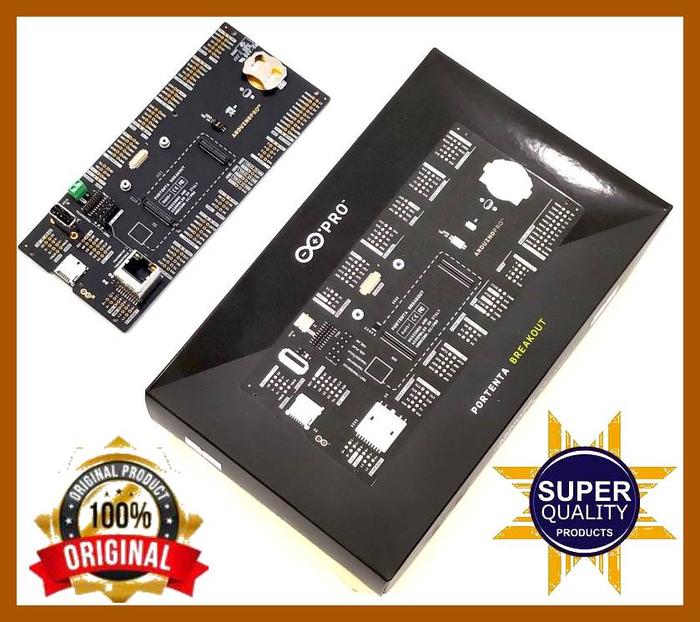

Arduino Portenta Breakout

Arduino Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7).
It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.

Features
Power ON Button
Boot mode DIP switch
Connectors
- USBA
- RJ45 up to 1Gb/s
- Micro SD card
- MIPI 20T JTAG with trace capability
Power
- CR2032 RTC Lithium Battery backup
- External power terminal block
I/O
- Break out all Portenta High Density connector signals
- Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals
Compatibility
- Standard Portenta High Density connector pinout
Safety information
- Class A

USB PORT USBA
ETHERNET RJ45 up to 1Gb/s
MEMORY SLOT Micro SD card
DEBUG MIPI 20T JTAG with trace capability
CONNECTORS HD male/female
RTC POWER BATTERY CR2032
LENGTH 164 mm
WIDTH 72 mm
WEIGHT 0,069 Kg
