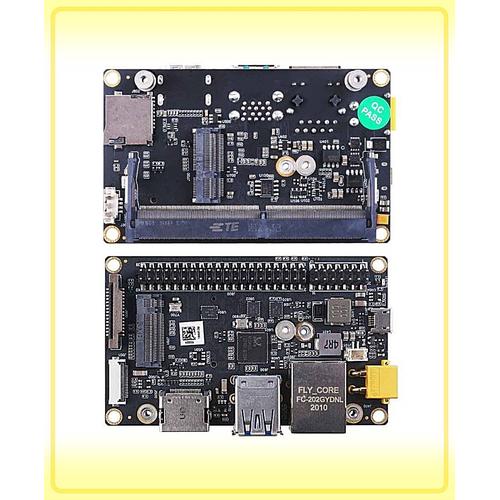

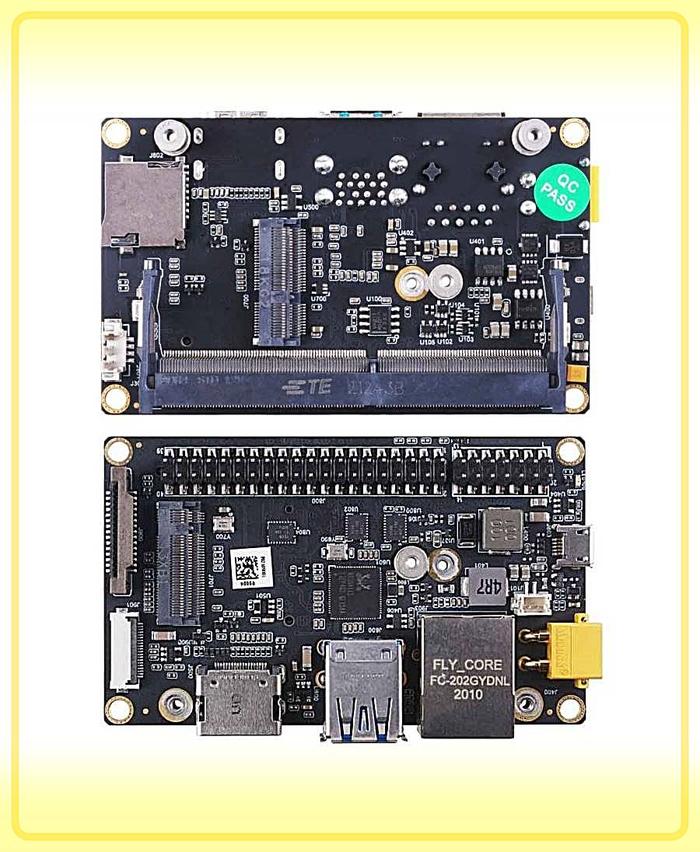

A203 Carrier Board Version 2 for Jetson Nano - Xavier NX - TX2 NX

A203 Carrier Board Version 2 for Jetson Nano - Xavier NX - TX2 NX
Features
Compact size (87mm*52mm*26mm) saves precious space
Lightweight (100g) good for small AI or IoT Application
Compact & all-in-one design
Equipped with an anti-fall aviation plug that supports high currents
Cost-effective, suitable for narrow and small operation environment
Additional USB 3.0 ZIF connector compared to its original version(A203)
Certificate: FCC CE RoHS

Application
Home robots
UAVs
Unmanned boats
Drone
Unmanned submarines
Sentiment Analysis

Part List
1 x A203 v2 Carrier Board
1 x Power Adapter 90W 19V (power cable not included)
1x Exchange line (XT30 female to DC Power Jack male)


Specifications :
HDMI Port : HDMI Right Angle Vertical Connector
USB 3.0 Type A : 2* USB 3.0 Link 1 Type-A Connector
NVIDIA Gigabit Ethernet : RJ45 Gigabit Ethernet Connector (10/100/1000)
DC Power : DC Input Power TE Connector
USB 2.0 : USB 2.0 Micro-AB Connector
FAN Connector : Picoblade Header
SD Card : 1x MicroSD Card Slot
M.2 Key E : PCI-E 2230 Size
CSI Camera : 1x CSI Camera
USB 3.0 ZIF Connector : USB 3.0 0.5mm pitch 20 pin ZIF
RTC Connector : 3V, 2 pin
M.2 Key M Disk : Disk size 2242
NVIDIA Jetson Nano/NX/TX2 NX : Nano/NX/TX2 NX 260 PIN Connector
Multifunctional port : 2.0 PITCH 40 PIN (such as UART, GPIO, SPI, etc.)
Multifunctional port : 2.0 PITCH 14 PIN (Reset, CAN, Recovery, etc.)

Datasheet : https://files.seeedstudio.com/wiki/reComputer/A203-V2-Carrier-Board-Specification.pdf
