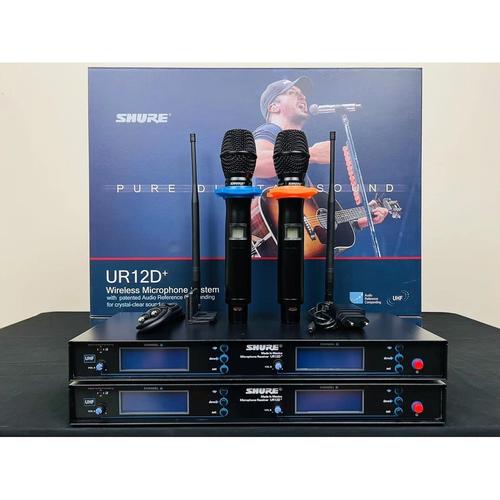

SHURE UR12D+ MIC WIRELESS UR12D PLUS MICROPHONE

MIC WIRELESS
SHURE UR12D+

SPESIFIKASI :

* SYSTEM :
 Frequency ranges 140-790 MHz
 Modulation mode Broadband FM
 Available Bandwidth 500 MHz
 Channel number 200
 Channel spacing 250 KHz
 Frequency stability ±0.005%
 Dynamic range 100 db
 Peak deviation ±45KHz
 Audio response 80Hz-18KHz (±3db)
 Comprehensive SNR >105 db
 Comperehensive Distortion ≤0.5%
 Operating temperature -10⁰C+40⁰C

* RECEIVER :
 Receiver mode double conversion super heterodyne
 Intermediate frequency the first medium frequency 100MHz the second medium frequency
10.7MHz
 Wireless interface BNC /500ꭥ
 Sensitivity 12dBµV (80Dbs/N)
 Spurious rejection ≥75 dbV
 Sensitivity adjusment range 12-32 dbV
 Maximun output level +10dbV

* TRANSMITER
 Output power High 30Mw ; Low 3Mw
 Spurious rejection -60db
 voltageTwo AA batteries
 current utility timeHigh >10 hours ; Low >15hours

KELENGKAPAN :
1bh reciever digital
2bh mic pegang digital
1bh kabel audio
Frequency UHF
