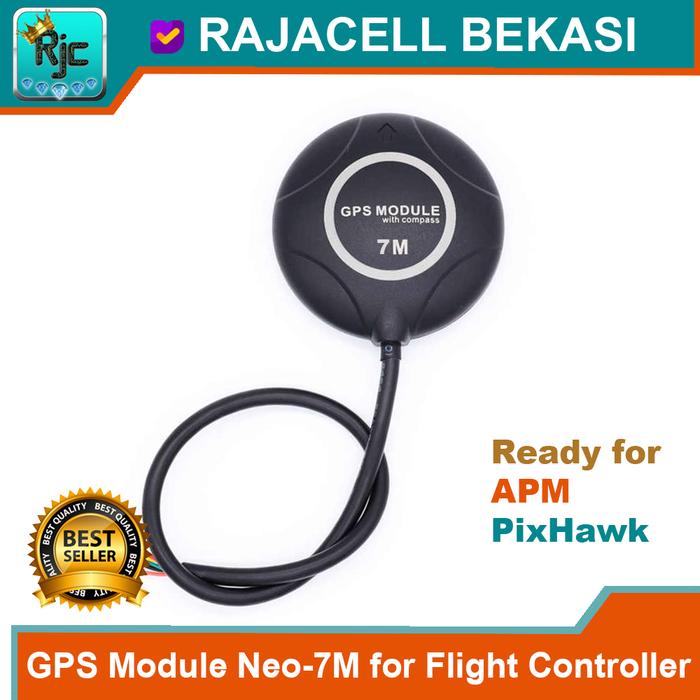

GPS Module Ublox Neo-M8N Neo7M For APM PixHawk Drone Flight Controller - Neo 7M, for PixHawk

Produk ini Memiliki 4 Varian Silahkan pilih sesuai kebutuhan -M8N for APM -M8N for PixHawk -Neo-7M for APM -Neo-7M for PixHawk GPS Chip parameters: Receiver type 72-channel M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (M8N) Nav. update rate1 Single GNSS: up to 18 HZ Concurrent GNSS: up to 10 Hz Position accuracy2 2.0 m CEP Acquisition2 Cold starts: 26 s Aided starts: 2 s Reacquisition: 1.5 s Sensitivity2 Tracking amp; Nav: 167 dBm Cold starts: 148 dBm Hot starts: 156 dBm Assistance AssistNow GNSS Online AssistNow GNSS Offline (up to 35 days)3 AssistNow Autonomous (up to 6 days) OMA SUPL amp; 3GPP compliant Oscillator TCXO (M8N/Q), Crystal (M8M) RTC crystal Built-In Noise figure On-chip LNA (M8M). Extra LNA for lowest noise figure (M8N/Q) Anti jamming Active CW detection and removal. Extra onboard SAW band pass filter (M8N/Q) Odometer Travelled distance Data-logger For position, velocity, and time (M8N) Operating temp. 40 C to 85 C Storage temp. 40 C to 85 C (M8N/Q) 40 C to 105 C (M8M) RoHS compliant (lead-free) Qualification according to ISO 16750 Manufactured and fully tested in ISO/TS 16949 certified production sites Uses u-blox M8 chips qualified according to AEC-Q100 Supply voltage 1.65 V to 3.6 V (M8M) 2.7 V to 3.6 V (M8N/Q) Power consumption4 23 mA @ 3.0 V (continuous) 5 mA @ 3.0 V Power Save Mode (1 Hz, GPS mode only) Backup Supply 1.4 to 3.6 V
