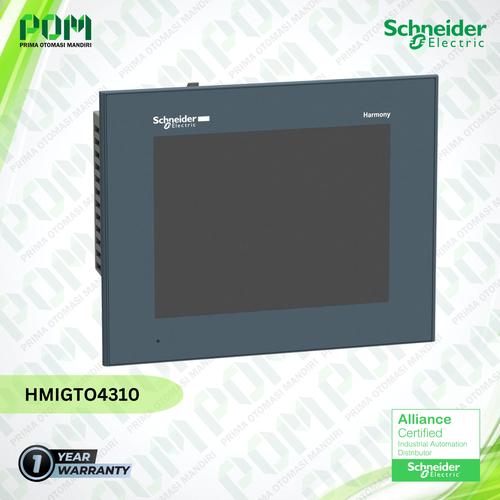

SCHNEIDER ELECTRIC HMIGTO4310 7.5 Color Touch Panel VGA-TFT

Main Range of product Harmony GTO Product or component type Advanced touchscreen panel Display colour 65536 colours Display size 7.5 inch Supply External source Operating system Harmony Battery type Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) Complementary Terminal type Touchscreen display Display type Backlit colour TFT LCD Display resolution 640 x 480 pixels VGA Touch sensitive zone 1024 x 1024 Touch panel Resistive film, 1000000 cycles Backlight lifespan 50000 hours white at 25 °C Brightness 16 levels - control by touch panel 16 levels - control by software Character font Korean Taiwanese (traditional Chinese) Japanese (ANK, Kanji) ASCII Chinese (simplified Chinese) [Us] rated supply voltage 24 V DC Supply voltage limits 19.2…28.8 V Inrush current 30 A Maximum power consumption in W 8 W when power is not supplied to external devices 5 W when backlight is OFF 5.5 W when backlight is dimmed 12 W Local signalling Status LED green, steady for offline Status LED green, steady for operating Status LED orange, flashing for software starting up Status LED red, steady for power supply (ON) Status LED clear, faded for power supply (OFF) COM2 LED yellow, steady for data is being transmitted COM2 LED yellow, faded for no data transmission SD card LED green, steady for card is inserted SD card LED green, faded for card is not inserted or is not being accessed
