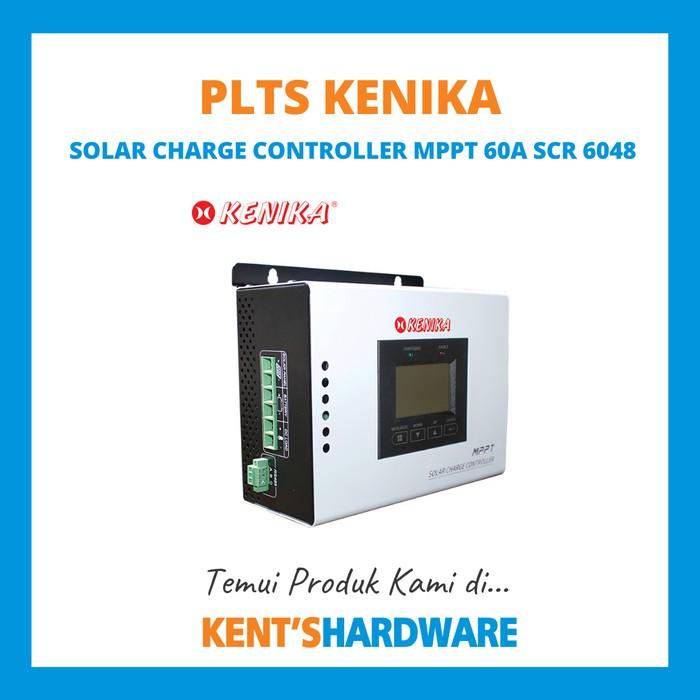

Kenika SCR 6048 Solar Charge Controller MPPT 12V/24V/48V 60A

TECHNICAL SPECIFICATIONS : MODEL : SCR6048 MPPT Efficiency : gt;99% System Voltage : 12V/24V/48V (Auto) Dimension (W x D x H) : 200 x 168 x 94mm INPUT Max. PV Input Voltage : 170VDC MPPT Operating Voltage Range : * 12V: 18VDC-150VDC * 24V: 34VDC-150VDC * 48 : 65VDC-150VDC Low Voltage Protection : * 12V: 16VDC * 24V: 30VDC * 48V: 60VDC High-Voltage Protection : 170VDC PV Rated Input Power : * 12V: 855W * 24V: 1710W * 48V: 3420W DC LOAD OUTPUT Load Voltage : Same as Battery Voltage Load Current : 20A Load Control Mode : ON/OFF, PV Voltage Control, Time Control, PV + Time Control CHARGE Battery Type : Sealed Lead Acid, Gel, Flooded, Lithium-Ion, User-Defined Charging Mode : MPPT (Maximum Power Point Tracking) Charging Current : 60A Charging Method : Three-Stage: CC (Constant Current) - CV (Constant Voltage) - CF (Float Charge) Temperature Compensation : -3mV/°C/2V (Default) Float Charging Voltage (Lead Acid Default) : * 12V: 13.8VDC (Settable) * 24V: 29.0VDC (Settable) * 48V: 55.2VDC (Settable) Boost Charging Voltage (Lead Acid Default) : * 12V: 14.5VDC (Settable) * 24V: 29.0VDC (Settable) * 48V: 58.0VDC (Settable) SYSTEM Protection Function : Input Low/Over Voltage, Input/Output Polarity Reverse Connection, Short Circuit, Over Temperature, Battery Shedding, etc. Display : Touch LCD+LED Cooling Method : Forced Air Cooling Standby Power : lt;2W Communication : RS485 ENVIRONMENT Relative Humidity : 0~90% RH (Non-Condensing) Altitude : lt; 3000m Operating Temperature : -20°C~+40°C Storage Temperature : -40°C~+75°C Protection Level : IP21
