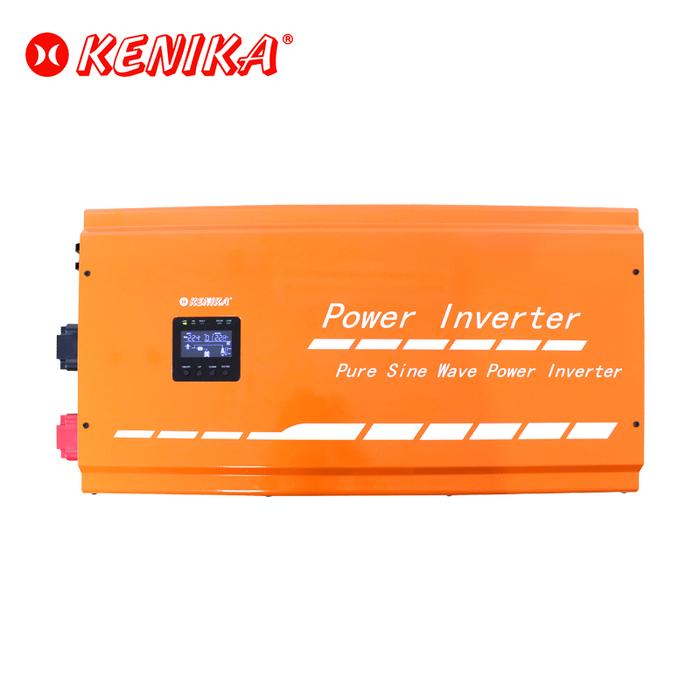

KENIKA POWER INVERTER KCT-10K96 10KW 96V
Rp16.500.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: INVERTER
Power Inverter Kenika adalah Inverter DC ke AC yang berfungsi untuk mengubah tegangan DC menjadi tegangan AC. Power Inverter Kenika memiliki keluaran Pure Sine Wave yang sama dengan keluaran PLN, sehingga inverter ini cocok digunakan untuk peralatan elektronik rumah tangga maupun peral atan elektronik sensitif lainnya. Power Inverter Kenika dengan energi ramah lingkungan dapat di aplikasikan sebagai sistem Off-Grid Standalone (untuk kebutuhan indoor dan outdoor seperti camping, rumah perahu, campervan, dll) maupun untuk mengurangi tagihan listrik.
FITUR
1. Menggunakan teknologi trafo toroidal (Low Frequency)
2. Memiliki perlindungan ganda
3. Teknologi energi ramah lingkungan
4. Teknologi manajemen baterai
5. Teknologi manajemen baterai
6. Teknologi monitoring jaringan
7. Teknologi kontrol CPU1 + N
Specifications:
MODEL : KCT-10K96
Capacity : 10KW
INPUT
Voltage Range : 220V (+25%,-25%)
Frequency : 50/60Hz ±2.5Hz (Auto)
OUPUT
AC Voltage Regulation : 220VAC ±3% (AC Mode ±10%)
Frequency : 50/60Hz ±0.5Hz Auto (AC Mode ±2.5Hz)
Battery Efficiency : 88%
AC Efficiency : 93%
Transfer Time : < 8ms
Waveform : Pure Sine Wave
BATTERY
Battery Type : AGM, Lead Acid, Gel
Battery Voltage : 96VDC
Floating Charge Voltage : 108.8VDC
Overcharge Protection : 120.0VDC
AC Charge Current : 0-20A
CONTROL MANAGEMENT
Method : LCD+LED
Content : Input/Output Voltage, Battery Voltage, Battery Capacity, Load Capacity, Working Mode, Frequency
PROTECTION
Battery Reversal : Optional
Output Short Circuit : AC Mode: Jump fuse. Inverter mode: Shut down
Overload Full load 100%, inverter will alarm. Overload 120%, inverter will shut down output in 10s. Once the load back to normal, inverter will recover output.
High AC Voltage : Turn off AC, turn to UPS mode automatically
Low DC Voltage : Inverter will shut down automatically, Once the AC recover, inverter will turn on and charge automatically
Over Temperature : Power Off
ENVIRONMENT
Humidity : 15~93% (No condensation)
Temperature : -10°C to +50°C
Altitude : ≤ 3000m
Communication : RS232/RS485/SNMP (Optional)
PHYSICAL
Shell Material : Aluminium
Product Size : 685×395×275 mm
Package Size : 770×480×340 mm
Gross Weight : 53 kg
FITUR
1. Menggunakan teknologi trafo toroidal (Low Frequency)
2. Memiliki perlindungan ganda
3. Teknologi energi ramah lingkungan
4. Teknologi manajemen baterai
5. Teknologi manajemen baterai
6. Teknologi monitoring jaringan
7. Teknologi kontrol CPU1 + N
Specifications:
MODEL : KCT-10K96
Capacity : 10KW
INPUT
Voltage Range : 220V (+25%,-25%)
Frequency : 50/60Hz ±2.5Hz (Auto)
OUPUT
AC Voltage Regulation : 220VAC ±3% (AC Mode ±10%)
Frequency : 50/60Hz ±0.5Hz Auto (AC Mode ±2.5Hz)
Battery Efficiency : 88%
AC Efficiency : 93%
Transfer Time : < 8ms
Waveform : Pure Sine Wave
BATTERY
Battery Type : AGM, Lead Acid, Gel
Battery Voltage : 96VDC
Floating Charge Voltage : 108.8VDC
Overcharge Protection : 120.0VDC
AC Charge Current : 0-20A
CONTROL MANAGEMENT
Method : LCD+LED
Content : Input/Output Voltage, Battery Voltage, Battery Capacity, Load Capacity, Working Mode, Frequency
PROTECTION
Battery Reversal : Optional
Output Short Circuit : AC Mode: Jump fuse. Inverter mode: Shut down
Overload Full load 100%, inverter will alarm. Overload 120%, inverter will shut down output in 10s. Once the load back to normal, inverter will recover output.
High AC Voltage : Turn off AC, turn to UPS mode automatically
Low DC Voltage : Inverter will shut down automatically, Once the AC recover, inverter will turn on and charge automatically
Over Temperature : Power Off
ENVIRONMENT
Humidity : 15~93% (No condensation)
Temperature : -10°C to +50°C
Altitude : ≤ 3000m
Communication : RS232/RS485/SNMP (Optional)
PHYSICAL
Shell Material : Aluminium
Product Size : 685×395×275 mm
Package Size : 770×480×340 mm
Gross Weight : 53 kg
