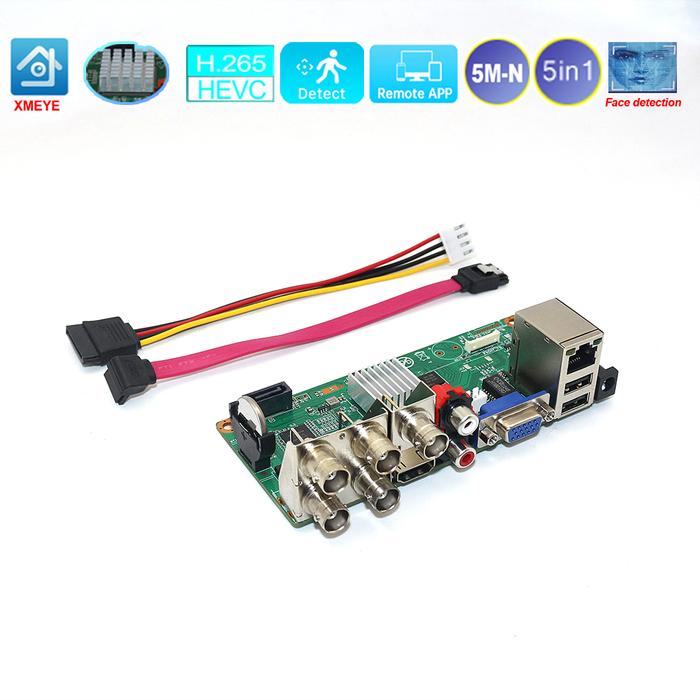

Xmeye Dvr 4 Channels 5M-N Board Video Surveillance Recorder Module With Onvif Audio Over Coaxial For AHD TVI CVI Analog IP CCTV

SELAMAT DATANG DI TOKO KAMI Brand Name : WUSONGLUSAN Technology : analog,AHD,HDCVI,HDTVI,Network Origin : Mainland China Certification : none Compression Format : H.265,H.264 Video Input Interface : BNC (1.0 Vp-p, 75) Audio Input : 1 RCA,4 Channel Audio Compression Format : G711A Video Standard : NTSC,PAL Video Resolution : 1080N,D1,HD1,960H,960P,720p,1080p,3MP,4MP Audio Output : 1CH RCA Hard drive Interface Type : SATA Hard Drive Size : 3.5 #39; #39; Network Interface : RJ45 10/100M Communication Interface : None Network Protocol : TCP/IP Wireless Security : wep IP Mode : Dynamic IP address Supported Mobile Systems : iPhone OS,Android Supported Operating Systems : Microsoft Windows 98,Microsoft Windows ME,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7,Mac OS Backup Type : Hard Drive,USB Flash Divers Alarm Action : FTP Photo,Email Photo Two-way Audio : no e-Cloud(P2P) : YES POE : None Smart home platform : other,none use at least 12V2A power adapter connect this board,power adapter is very important,make sure your power adapter is in good quality. if you connect with 3T or 4T HDD,please better connect with DC12V3A or 12V5A power adapter. board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input. or the monitor will show black screen after it display first time the Boot logo(will show #34;out of range #34; or #34;input not supported #34;) 3.You need to ensure that your monitor resolution can support my device resolution output or support adaptive mode, or you can try to not adapt to the monitor, directly connect to the network, and then use CMS or APP: xmeye to search for the device and use it. You can also tell us the resolution of your monitor,and we will adjust the resolution output for you. 4.This is a motherboard accessory. Please be careful during operation and take anti-static measures to avoid damage to the circuit. For each product, we will test and shoot a video before shipping, confirm that there is no problem before shipping. We are not liable for damages deemed to be caused by improper operation. Parcel include: 1*DVR Board 1*SATA data cable 1*SATA power cable this board include battery,if you need lower price and not need battery,you can buy board without battery,can click below picture to buy Channel type 4CH 5M-N Language Main display 4CH H.265+ Display resolution 4CH be sure your monitor displayer support the resolution,we default 1280*1024,if lower to 1280*1024.will can not display and show out of need ask US switch to lowest resolution. Features: Support H.265encoding, ultra-low bitrates, compatible with H.264 surroundings; Support VGA, HDMI full HD output simultaneously; Support ONVIF; access third party; Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Support web, VMS, center platform management software MYEYE, Support various mobile monitoring (iPhone, Android); Remote Access, With DNS (ARSP),easy to monitor remotely Support UTC, control signal amp; video stream transmit through one single coaxial Support XVI/AHD/TVI/CVI/CVBS/IP sixsignals; Support intelligent analysis: Human detection, face detection,Vehicle shape detection; Technical Parameters: Model AHB 8 0N 04R M -MH -V3 System Main processor NT98331 I nterface Preview 1/4/8/9 Video Codec H.265 Monitor quality VGA(1080P at most);HDMI( 1080P at most) Preview ability 4*5M-N@20fps 6 in 1 /4*4M-N@ 30 fps 6 in 1 /4*1080P 6 in 1 default:5M-N Encode ability 4*5M-N@20fps 6 in 1 /4*4M-N@28fps 6 in 1 /4*1080P@25fps 6 in 1 default:5M-N Decode ability 2*5M-N@20fps 6 in 1 /2*4M-N@28fps 6 in 1 /2*1080P@25fps 6 in 1 default:5M-N Multi-mode input A nalog4* 5 M-N hybrid 4*5M-N analog+ 2*1080P network network 16*1080P;8*5M Digital to analog conversion U nsupport Motion Detection Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio compression G.711A Intercom support Record amp; playback Record mode manual gt;alarm gt;motion detection gt;timing L ocal Playback 2 ch(analog input mode) Search mode S earch by t ime, calendar, event, channel Storage amp; backup Video storage HDD, network Backup mode Network, U SB hard disk, USB burner, SATA burner E xternal Interface Video input 4 ch BNC Video output 1ch VGA, 1ch HDMI Loop Vout N/A Audio I/O 1/1 Alarm I/O 0/0 Network interface RJ45 10M/100M self-adaption PTZ control Support kinds of PTZ protocols USB 2* USB 2.0 ports HDD 1 *SATA port s (Max 14 T B/per) Wireless 3G, WIFI (exten d via USB) General Power supply 12V/ 2 A PowerConsumption lt;15W (without HDD ) W orking environment Temperature:0+55 Humidity :10 Atm :86kpa106kpa D imension 1 35 mm *60mm Weight 1 05g How to see it by smartphone and by CMS please use
