Schneider Network Switch Modicon Networking 6 ports - MCSESU083F2CU0

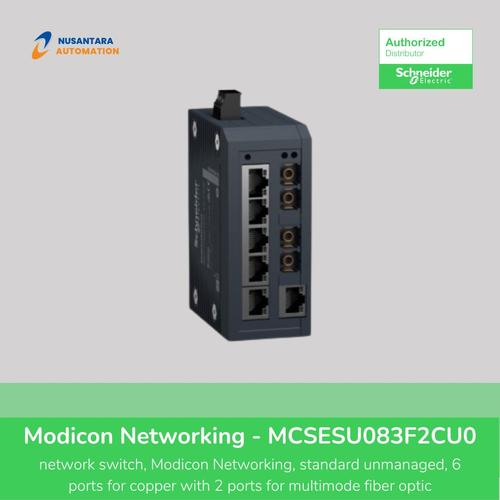

Network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic - MCSESU083F2CU0 This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 6 transmission ports for copper cable and 2 port for multi-mode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 3.8W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 45mm (width) x 110mm (height) x 88mm (depth) and weighs 0.235kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. [Specifications] 1. Range of product: Modicon 2. Concept: Transparent Ready 3. Communication port protocol: Ethernet TCP/IP 4. [Us] rated supply voltage: 12...24 V 5. Supply voltage limits: 9.6…32 V DC SELV 6. Power consumption in W: 3.8 W 7. Mounting support: 35 mm symmetrical DIN rail 8. Width: 45 mm 9. Height: 110 mm 10. Depth: 88 mm 11. Net weight: 0.235 kg ORIGINAL DARI SCHNEIDER ELECTRIC# * Produk yang dijual READY STOCK bukan PO * Tidak menjual barang KW atau bekas Jam Operasional : Senin s.d. Kamis 08.00 s.d. 17.00 WIB Jumat 08.00 s.d. 15.00 Sabtu, Minggu, dan Libur Nasional TUTUP. Dapatkan penawaran terbaik untuk partai besar WA : 0851 7523 2700
