MODBUS RTU Analog Output Module 3 channel current output 4-20mA

Rp810.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: OTOMASI

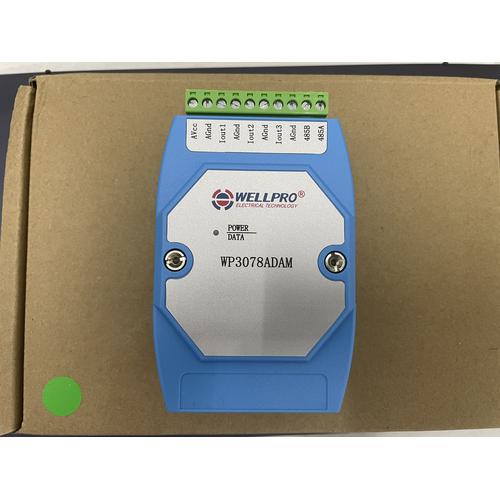

MODBUS RTU Analog Output Module 3 channel current output 4-20mA

WP3078ADAM

1、Product Description :

Three current output channel: DC4~20mA
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication status LED
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field

2、Specification :

Analog output channel 3ch
Analog output range DC4~20mA
Analog output accuracy ±0.03mA
Maximum output load 1050Ω（DC24V）
Working temperature -20~70℃
External power supply DC9V~30V/2W
Isolation protection DC1500V
Installation method Standard DIN slide rail or screw
Dimension 125×73×35mm

3、Interface description :

AVcc : External power supply input positive
AGnd : External power supply input negative / Power ground
Iout1 : Current output channel 1 positive
AGnd : Current output channel 1 negative / Analog ground / Power ground
Iout2 : Current output channel 2 positive
AGnd : Current output channel 2 negative / Analog ground / Power ground
Iout3 : Current output channel 3 positive
AGnd : Current output channel 3 negative / Analog ground / Power ground
485B : RS485 signal B-
485A : RS485 signal A+

**** WP3078ADAM ****

Download User Manual & Software :

https://icedrive.net/s/SZRzWxNwzzRfzDjYzuFbP1u4Quxz

User Manual :

https://icedrive.net/s/19kSSW5W1h51Ag85j43AAS1f6afi

Power Supply NOT INCLUDED

Warranty : 1 Year
