UPS APC 3Phase / 3 Phase 20kVA 20kW 380V/400V/415V E3SUPS20KHB+E3SBT4

Model Terbaru dari APC

Mitra Resmi APC Indonesia

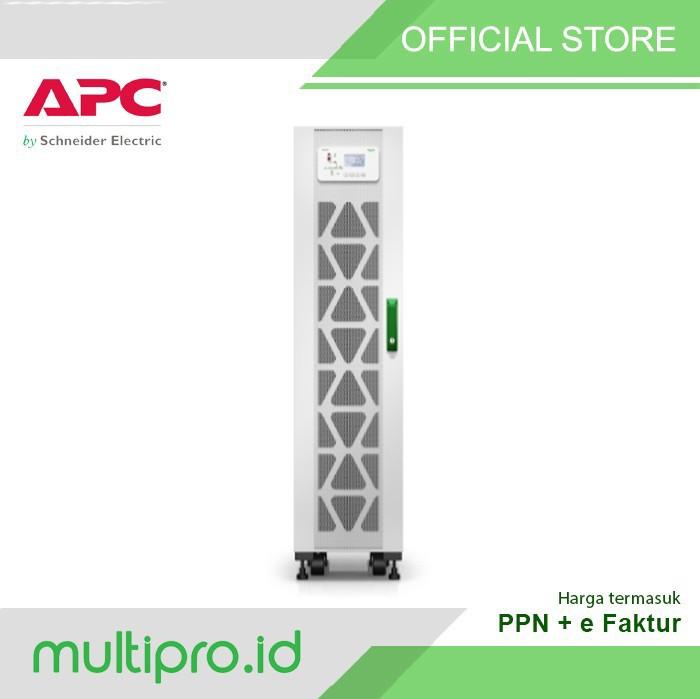

Easy UPS 3S 20 kVA 400 V 3:3 UPS for internal batteries
APC UPS 3-PHASE EASY 3S 20kVA BACK UP TIME 15 MINUTES AT FULL LOAD PF 0.9 VRLA BATTERY

Include :
- E3SBT4 Easy UPS 3S Battery String x3
- E3SOPT001 Easy UPS 3 Series Network Card x1
- WSTRTUP-EZ-20 Start-Up Service 5X8 for (1) Easy UPS 3S 20kVA UPS x1

Features:
- Easy to install and start up
- Available in 10 - 40kVA
- Power Factor 0.9
- Extended runtime
- Easy to expand up to four UPSs
- Quickly and easily replace the dust filter conveniently located behind the front door.
- Monitoring of UPS status remotely through a Web interface (optional)
- Easy Loop test verifies UPS performance before you connect your load, without the need for a load
bank
- On-site start-up* with Schneider Electric Field Service Representatives (mandatory)

SpecTech:
- Main Input Voltage : 400 V 3 phases
- Input Voltage: 380 V, 415 V
- Input Frekuensi: 45 - 65 Hz
- Main Output Voltage : 400 V 3 phases
- Output Voltage: 380 V, 415 V
- Output Frekuensi :50 – 60 Hz sync to mains
- rated power in W: 20 kWatts
- rated power in VA : 20 kVA
- provided equipment : Dust filter,Installation guide
- maximum input current : 37 A
- Input Power Factor at Full Load : 0.9
- UPS type : Double conversion online
- battery type : VRLA
- battery voltage : 240V

Net Weight: 460 KG ( UPS + Battery)
Shipping Weight: 500 KG ( UPS + Battery)
Physical HxWxD: 140 x 38 x 93 cm
Shipping HxWxD: 164 x 57 x 102 cm
Protection Class: IP20
Standard Warranty: 1 year on-site with factory authorized Start-Up

NOTICE :
- Belum termasuk Startup di luar Jakarta (WAGSTRAVEL)
- Startup dilakukan pada hari dan jam kerja, di luar itu dikenakan biaya tambahan
- Belum termasuk material dan jasa instalasi (hubungi kami utk jasa instalasi)
