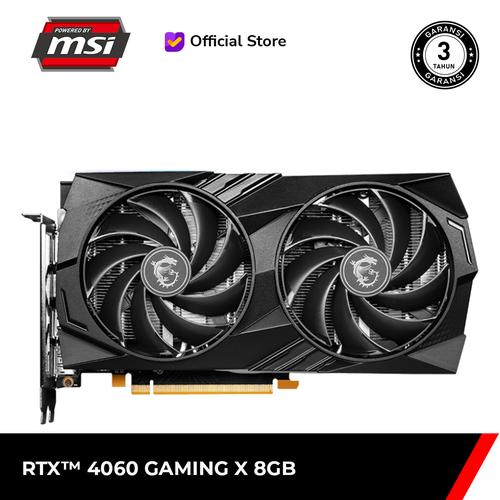

MSI GeForce RTX 4060 GAMING X 8GB GDDR6 128-bit [GPU]

GeForce RTX 4060 GAMING X 8G
WITH DLSS 3
Game, stream, create. The GeForce RTX 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.

Boost Clock / Memory Speed
2460 MHz / 17 Gbps
8GB GDDR6
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TWIN FROZR 9 Thermal Design
TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Model Name
Graphics Processing Unit
Interface
Core Clocks
CUDA CORES
Memory Speed
Memory
Memory Bus
Output
HDCP Support
Power consumption
Power connectors
Recommended PSU
Card Dimension (mm)
Weight (Card / Package)
DirectX Version Support
OpenGL Version Support
Maximum Displays
G-SYNC technology
Digital Maximum Resolution
GeForce RTX 4060 GAMING X 8G
NVIDIA GeForce RTX 4060
PCI Express Gen 4 x 8
Extreme Performance: 2610MHz (MSI Center)
Boost: 2595 MHz
3072 Units
17 Gbps
8GB GDDR6
128-bit
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
Y
115 W or 120 W
8-pin x 1
550 W
247 x 130 x 41 mm
587 g / 1000 g
12 Ultimate
4.6
4
Y
7680 x 4320
