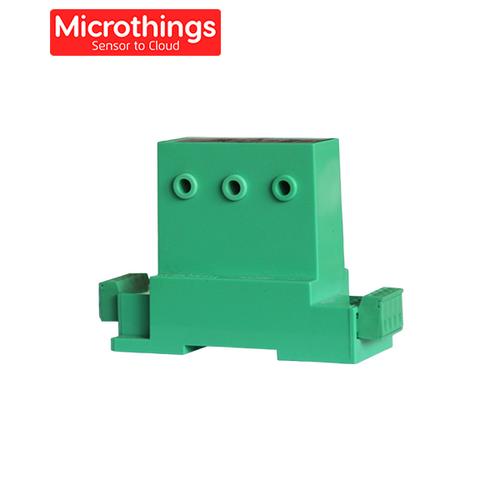

Current Transducer 3 Phase With Output Analog 4 - 20 mA

Three phase Current Transducer With Output Analog 4-20mA Model:CTI300 The CTI300 is special for 3-phase AC power current A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer. Introduction : The CTI300 is special for 3-phase AC power current A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer. The CTI300 is used widely as a current measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. The CTI300 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields. Specifications: Please inform us the correct parameters from below specifications before you order this item. Rated Power Input:Default:12VDC, Optional: 5VDC,15VDC, 24VDC; Input Current:Default:0~10A, Optional: 0~1A, 0~5A; Output Current:4-20mA Precision Class:Default:0.5%, Optional: 0.2%; Isolation Voltage: 2500VDC; Installation Type:standard 35mm DIN rail Relative Humidity:0~98%RH.; Operation Temperature:-10~55℃; Dimension:96X76X38mm(HxWxD) Net Weight:140g.
