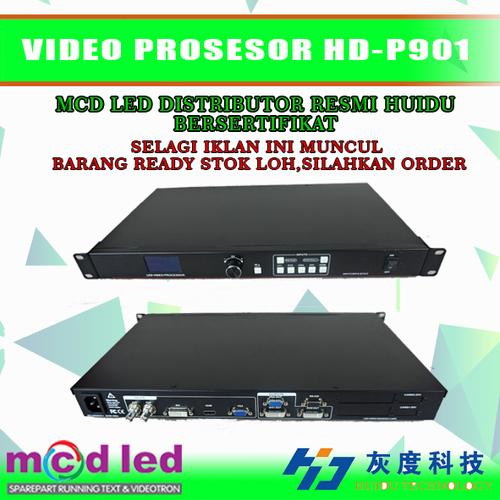

LED VIDEO PROSESOR HUIDU HD P901

VIDEO INPUT

QUANTITY & SIGNAL TYPE :
4*conposite video; PAL,NTSC,PAL-M/N,SECAM
2*VGA; VESA standard, hightes1920x1080@60Hz
2*DVI; VESA standard, hightes1920x1080@60Hz
2*HDMI; 280i/p, 576i/p, 1080i/p
Deep Color Support; 8, 10, 12 bit
1*SDI (optional); 1080p 60/50/30/25/24/25(PsF)/24(PsF)
720p 60/50/25/24
1080i 1035i
625/525 line
CONNECTOR :
5*BNC socket; composite video input
SDI input (optional)
2*15pin HD socket; RGB input
2*DVI-I socket; DVI input
2*HDMI socket; HDMI input

RESOLUTION RANGE : 640X480~1920X1080 480i/p, 576i/p, 720p, 1080i/p, 2048x1080
point to point sampling
Go Blank

VIDEO PROCESSING :
Analog sampling; Each color 12 bit : 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital pixel data bit depth; Each channel 8, 10, 0r 12 bit
2 channel used for HDMI
3GHz standard (SDI)

VIDEO OUTPUT :

QUANTITY / SIGNAL TYPE;
1*VGA : Converted by image resolution RGBHY, RGBS,RGSB
5*DVI : Digital video (meet the VESA standard)
1*SDI-LOOP : SDI Signal loop out (optional)

CONNECTOR;
4*DVI-I socket : DVI programming output
1*DVI-I socket : monitor output interface
1*BNC socket : SDI-LOOP output (optional)

RESOLUTION :
1024x768@60Hz 2048x640@60Hz
1024x1280@60Hz 1024x1920@60Hz
1280x1024@60Hz 1920x1280@60Hz
1440x900@60Hz 1280x720@50Hz
1536x1536@60Hz 1920x1080@50Hz
1600x1200@60Hz 2048x1152@60Hz
1920x1080@60Hz 2304x1152@60Hz
1920x1200@60Hz 2560x960@60Hz 3840x640@60Hz

Custom Resolution :
@60Hz: 265*2=5.3 millionpixels
3840x1380@60Hz
7680x640@60Hz
2560x1920@60Hz
@30Hz: 530*2=10.6 million pixels
3840x2160@30Hz
