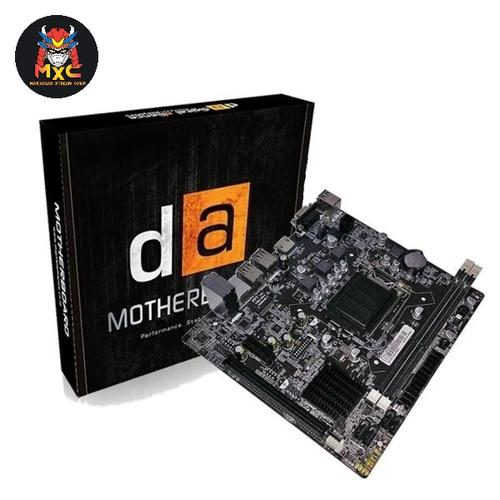

Motherboard Digital Alliance DA H61 Intel LGA 1155 DDR3 NVMe m-ATX - MOBO

Motherboard Digital Alliance DA H61 Intel LGA 1155 DDR3 NVMe m-ATX SPESIFIKASI Motherboard H61 Processor Supports Intel Socket 1155 Core i7/ i5/ i3 processors Supports Intel Gen 2 amp; Gen 3 Supports Intel next generation 32nm multi-core processors Chipset Intel H61 Memory Support Support Dual channel DDR3 1333/1600/1866 SDRAM (8GB Max) 2 x DDR3 DIMMs (240 pin/ 1.5V) LAN Support Realtek 10/100 Mbps Audio Chip integrated by Realtek ALC 6CH high definition audio Slot 1 x PCI Express x16 Slot 1 x PCI Express x1 Slot 1X SLOT M.2Support PCIE/SATA mode, choose by jumper Storage 3 x SATA port 1 x 24-pin ATX Power Connetor 1 x 4-pin ATX 12V Power Connetor 2 x USB connector support additional 4 USB ports 1 x VGA 1 x HDMI 4 x USB 2.0 1 x LAN(RJ45) Port 1 x F_USB pin 1 x USB3.0 pin 1 x F_AUDIO pin 1 x J_SPK pin 1 x JCMOS initial bios restore pin 1 x CPU_FAN pin 2 x CSYSFAN pin Form Factor Micro ATX - 213 x 170 mm
