step up dc to dc

Rp175.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: Semua Etalase

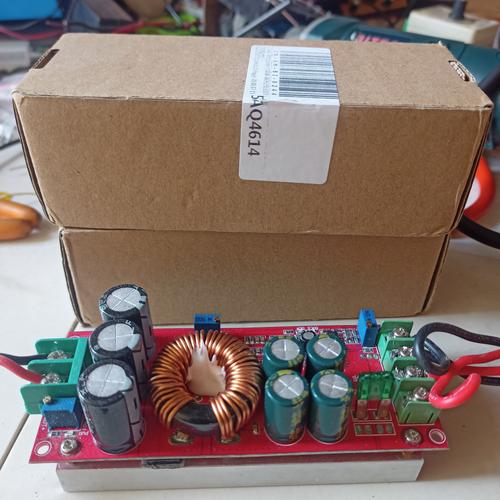

Non-Isolated DC-DC Step-up Module
Input voltage: the DC 10-60V
Input Current: 20A (MAX) more than 15A please add cooling fan (plus cooling fan input voltage 12-24V input current up to 25A)
Quiescent current: 15mA (12V to 20V, the output voltage is higher quiescent current will increase)
Output voltage: 12-83V continuously adjustable (default output 19V)
Output Current: 18A (Max), more than 10A please add heat dissipation
Constant current range: 0.5-18A (+/- 0.3A)
Enter the anti-reverse: YES (150A power MOS Prevention)
Low Battery Protection: YES (9-50V adjustable)
Operating temperature: - 40 to + 85 degrees
Operating frequency: 150KHz
Conversion efficiency: 92% - 97%
Input over-current protection: Yes (Over 25A Stop)
Short circuit protection: Yes (input 30A fuse) double short circuit protection and safer to use.
Connection: Terminals
Module dimensions: length 130mm width 52mm height 53mm
Single modules : 300 g
