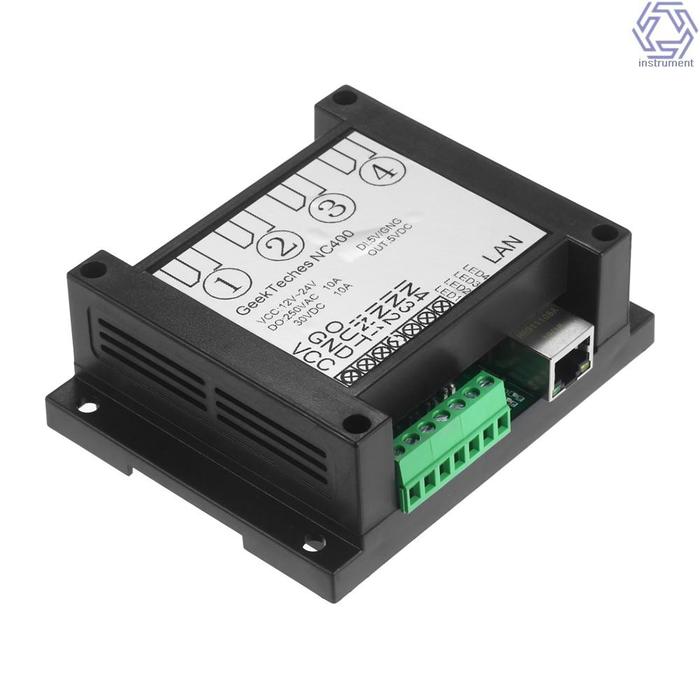

INTU 4 Remote Control Relay Module Networking Controller with the

4 Remote Control Relay Module Networking Controller with the Mode of UDP TCP Client/Host for Home Automation Applied to control the opening/closing of the relay through the network. Features: UDP, TCP client and TCP host are supported. Adopted ip W5500 for more stable and faster response of network data package. 4 relay outputs, 4 LED indicators identification, 4 relay status.    Indicator lights when the corresponding relay is closed.  The high and low level of the input control, whi is higher than that of network control, command the closure of the relay. Network Configuration 1. Connect the local computer with the host computer in the same gateway condition. 2. According to the network communication protocol configuration IP address, gateway and so on. 3. Through the network debugging assistant or other upper computer software configuration of the address can be used. This product works in UDP mode by default. Parameters: Input voltage power supply range：12V24V Control level input：5V Relay withstand voltage：10A/250VAC 10A/30VDC 4-way relay output, 4-way led light identification, 4-way relay status. The light of the corresponding led indicates the closure of the corresponding relay. 4 - way network relay communication protocol specification Initial network configuration The gateway parameter：192.168.18.1 Subnet cover：255.255.255.0 Physical address：bc.5f.f6.00.74.32 The IP address of the maine：192.168.3.102 The port number of the maine：5000 The IP address of the target：192.168.3.100 The port number of the destination：4001 Working mode：The pattern of UDP The contents of the communication protocol Both send and receive are 2-bitv hexadecimal counts Specifications: Color: Black / White optional Material: ABS VCC: 12V24V DI: 5V/GNG DO:
