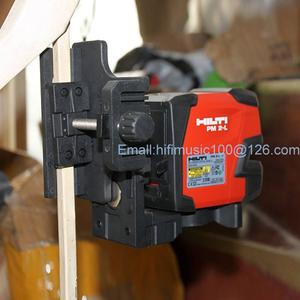

Hilti laser level PM 2-L Line laser Laser line projectors laser line

Model Number : PM2-L
DIY Supplies : ELECTRICAL
Brand Name : LETER
Origin : Mainland China
Certification : CE,NONE


The instrument contains three brackets: L-type magnetic bracket, front clip, clip

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitions- opens in a new window or tab... Read moreabout the condition

Horizontal and vertical line with a large fan angle to cover the whole working area

- Rubber-coated housing and pendulum lock for higher robustness

- Switched independent or simultaneous laser lines for horizontal and vertical alignment applications
Transferring reference heights

- Leveling suspended ceilings

- Leveling electric sockets, cable trays, radiators and pipe installations

- Leveling and aligning doors and windows

- Vertical alignment of pipes
Technical Data

Dimensions (LxWxH)

107 x 65 x 95 mm

Laser functionality

Level
Align

Accuracy (at 24)

3 mm 10 m

Width

65 mm

Weight with batteries

430 g

Battery type

4 x 1.5 V (AA)

Operation time with Alkaline battery

20 h

Laser

< 1 mW, 635 nm, class 2 (IEC 60825-1: 2008), Class II (CFR 21 art. 1040)

Laser line width at 5m distance

< 2.2 mm

IP protection class

IP 54

Operating Temperature Range

10 - 50 C

Package content

Equiped with line laser PM 2-L, pouch PMLW 60, 4 batteries (Type AA), in cardbox
