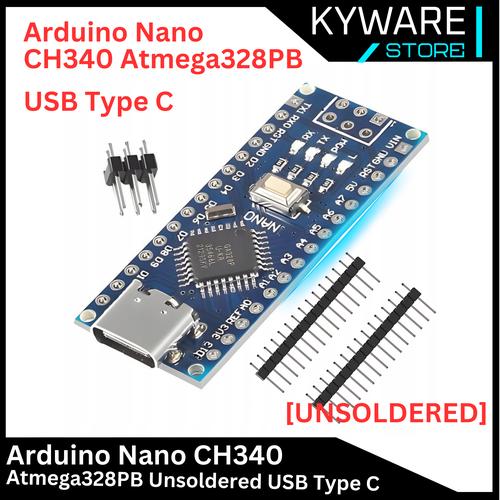

Nano V3 Compatible Arduino Nano Board CH340 ATMEGA328P 5V USB Type C - Atmega328PB

Hampir 100% stok yang tertera pada toko kami adalah sesuai dan selalu update otomatis karena kami hanya menjual di tokopedia.

Nano Expansion Shield :
https://www.tokopedia.com/kyware/nano-expansion-shield-extension-for-arduino-nano-v3-io-sensor-shield

Arduino Nano Soldered : https://www.tokopedia.com/kyware/nano-v3-compatible-arduino-nano-board-ch340-atmega328p-5v-mini-usb-soldered-82d39

Spesifikasi Teknis:
- Nano V3
- ATmega328P (16Mhz) microcontroller,
- CH340C - USB-UART interface,
- Operating Voltage (logic level) : 5 V
- Input Voltage (recommended) : 7-9 V
- Input Voltage (limits) : 6-20 V
- Digital I/O Pins :14 (of which 6 provide PWM output)
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Flash Memory : 32 KB of which 2 KB used by bootloader
- SRAM : 2 KB
- EEPROM : 1 KB
- Clock Speed : 16 MHz
- Length : 45 mm
- Width : 18 mm

Paket :
- 1x Arduino Nano Atmega328P CH340 USB Type C

Driver :
CH340 : https://www.arduinoindonesia.id/2023/07/cara-install-driver-ch340-atau-ch341.html

[Konsultasi teknis atau harga grosir silahkan chat kami!]
