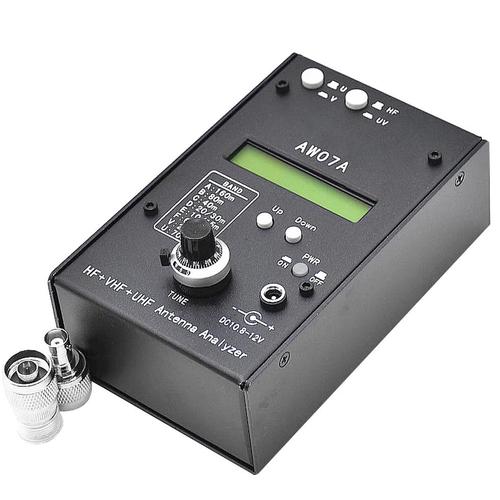

HF/VHF/UHF AW07A 1.5-470MHZ 160M Multiband Antenna Analyzer Measure Tool SWR Antenna Analyzer with 1.0 To 9.99 SWR for Ham Radio - CHINA

Selamat Berbelanja dan mohon baca rincian pd deskripsi :)

- Delivery from Singapore/China
- Estimasi waktu pengiriman 7-10 Hari sampai alamat (Pengiriman Express)
- Harga sudah termasuk Ongkir + biaya Pajak
- Packing Safety
- Trusted Seller (Amanah)
- Jaminan uang kembali jika barang diterima berbeda !!!

HF/VHF/UHF AW07A 1.5-470MHZ 160 M Impedance SWR Antenna Analyzer HF +UV Spectrum Analyzers with 1.0 To 9.99 SWR Usable Measurement Range with 1.0 To 9.99 SWR RF Impedance Antenna Analyzer for Ham Radio
Feature:
1. Comprehensive Analysis: The HF +UV spectrum analyzers is capable of testing standing wave ratio (SWR) status, measuring impedance and reactance components, and diagnosing antenna issues. An integrated tool for comprehensive antenna analysis, it incorporates a variable oscillator, frequency counter, independent oscillator, 50 Ohm RF bridge detector, A/D converter, and microcontroller for accurate and reliable measurements.
2. Portability: The AW07A multiband antenna analyzer is a compact, battery-powered RF impedance analyzer designed to meet the needs of on-site testing. Its small size and portability allow for easy use anywhere without the need for an external power source.
3. Wide Frequency Range: The SWR antenna analyzer offers a wide working frequency range from HF to 470MHz. It covers six overlapping frequency bands from 1.5MHz to 71MHz, including SWR measurements from 75-139MHz and 230-470MHz. This provides excellent frequency coverage suitable for a wide range of applications.
4. Precise Measurement: Using the impedance SWR antenna analyzer, you can measure impedance and reactance components with high precision. This feature paves the way for precise tuning of the antenna system.
5. Versatility: In addition to antenna analysis functions, this SWR antenna meter tester also provides a range of additional features including signal generation, capacitance measurement, inductance measurement, impedance value display, resistance value display, SWR value display (1.1 to 9.99), RF strength meter, and frequency counter.






Specification:
The Aw07a Antenna Analyser Is A Small Battery Powered Rf Impedance Analyser. It Tests The Vswr State Of An Antenna, Measures Impedance And Reactance Components, And Helps You Solve Antenna Problems. The Unit Consists Of Six Basic Components: A Variable Oscillator, A Frequency Counter, A Stand-Alone Oscillator, A 50-Ohm Rf Bridge Detector, An A/D Converter, And A Microcontroller. This Compact Product Is Designed To Meet The Needs Of Rugged Construction And Field Testing. The Device'S Operating Frequency Range Starts At Hf And Goes Up To 470 Mhz. The Device'S Operating Frequency Range Extends From 1.5 Mhz To 71 Mhz In Six Overlapping Bands, Including 75-139 Mhz And 230-470  Mhz For Swr Measurements.
Diy Consumables: Electrical
Model: Spectrum Analyser Band
Coverage: 160 M/6299.21 In, 80 M/3149.60 In, 40 M/1574.80 In, 20/30 M (787.40/1181.10 In), 10/15 M (393.70/590.55 In), 6 M/236.22 In, 2 M
78.74 In, 70 Cm/27.55 In
Rf Output Level: 2vpp
Swr Range: 1-9.9
External Power Supply: Dc 10.8-12 V
Power Consumption: <150ma (Hf Band, B/F Off) <165ma (Vu Band, B/L Off)
Product Dimensions: 155 X 100 X 55 MM/6.10 X 3.93 X 2.16 Inch
Function:
Signal Source Capacitance
Measuring Instrument Inductance
Measuring Instrument Display
Impedance Value
Impedance Value Displayed
Swr Value Range From 1.1 To 9.99
Rf Intensity Meter
Frequency Counter
Diy Use Scenario: Electrical

Note:
Due To The Different Monitor And Light Effect, The Actual Color Of The Item Might Be Slightly Different From The Color Showed On The Pictures. Thank You!
Please Allow 1-2 CM Measuring Deviation Due To Manual Measurement.








1 X SWR Antenna Analyzer
2 Pcs X Antenna Connector Adaptor
1 Pcs X Connection Cable


Specifications:
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Brand Name: alloet
Origin: Mainland China
Certification: none
HF +UV Spectrum Analyzers: Multiband Antenna Analyzer
SWR Antenna Analyzer: Impedance SWR Antenna Analyzer
SWR Antenna Meter Tester: Antenna Analyzer Meter
