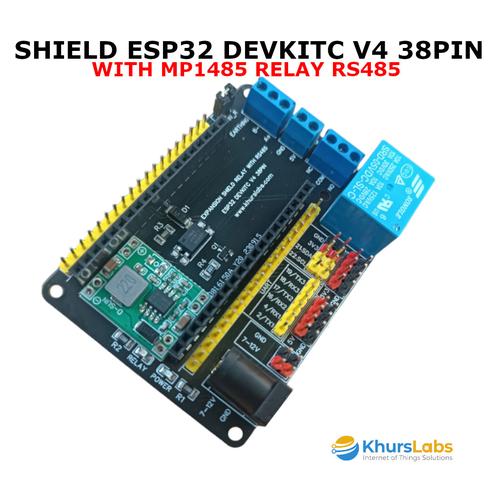

IO Expansion Shield ESP32 DevkitC V4 With RS485 & Relay High Trigger

Rp115.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: 00 - KHURSLABS

𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀

SKU: KM3033

Shield ESP32-IO Board DevkitC V4 dirancang untuk kompatibilitas dengan ESP32 DevkitC V4 38PIN Wroom Development Board. Shield ESP32-IO mengeluarkan semua pin dari ESP32 DevkitC V4 38PIN Wroom Development Board dalam bentuk header pin 2,54 mm. Untuk menghubungkan sensor lain dengan mudah. Anda hanya perlu memasukkan tegangan DC 7-12V pada soket hitam DC untuk menyalakan ESP32 DevkitC V4 38PIN Wroom Development Board Karena Sudah Ada IC Regulator 5V.

Compatible
- ESP32 DevkitC V4 38PIN Wroom Development Board - ESP32-U
- ESP32 DevkitC V4 38PIN Wroom Development Board - ESP32-D
- ESP32 Dengan 38PIN

Fitur:
- 2x Output I2C
- 3x Output UART
- 1x Built in Relay High Trigger With LED & Optocoupler Protection
- 38 PIN Out
- 4x 5V DC 3A / 15WATT
- 4x 3.3V DC
- Indikator Power
- Indikator Relay
- Input DC Tblock / Jack DC (Optional)
- RS485 Module ( PIN 16/RX2, 17/TX2)

Pinout:
- SDA = 21
- SCL = 22
- RX1 = 4
- TX1 = 2
- RX2 = 16
- TX2 = 17
- RX3 = 18 (SoftSerial)
- TX3 = 19 (SoftSerial)
- Pin Relay = 25
- RS485 Module ( PIN 16/RX2, 17/TX2)

Spesifikasi:
Supply voltage: DC 7-12V
Working current: 60mA
Maximum power: 0.3W
Operating temperature: -25℃ to +65℃
