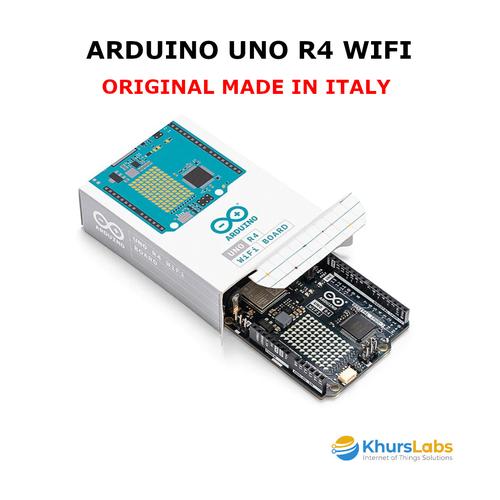

Arduino UNO R4 WiFi - ORIGINAL MADE IN ITALY
Rp595.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 01 - ARDUINO OFFICIAL
𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀
SKU: ABX00087 / KK4006
The Arduino UNO R4 WiFi merges the RA4M1 microprocessor from Renesas with the ESP32-S3 from Espressif, creating an all-in-one tool for makers with enhanced processing power and a diverse array of new peripherals. With its built-in Wi-Fi and Bluetooth capabilities, the UNO R4 WiFi enables makers to venture into boundless creative possibilities. Furthermore, this versatile board boasts a convenient on-board 12x8 LED matrix and a Qwiic connector, offering ample space for innovation and unleashing creativity. This dynamic combination empowers makers to transform their ideas into reality and elevate their projects to unprecedented heights.
Tech specs
Board
- Name Arduino UNO R4 WiFi
- SKU ABX00087
Microcontroller Renesas RA4M1 (Arm Cortex-M4)
USB USB-C Programming Port
Pins Digital I/O Pins 14
Pins
- Analog input pins 6
- DAC 1
- PWM pins 6
Communication:
- UART Yes, 1x
- I2C Yes, 1x
- SPI Yes, 1x
- CAN Yes 1 CAN Bus
Power:
- Circuit operating voltage 5 V (ESP32-S3 is 3.3 V)
- Input voltage (VIN) 6-24 V
- DC Current per I/O Pin 8 mA
Clock speed:
- Main core 48 MHz
- ESP32-S3 up to 240 MHz
Memory:
- RA4M1 256 kB Flash, 32 kB RAM
- ESP32-S3 384 kB ROM, 512 kB SRAM
Dimensions
- Width 68.85 mm
- Length 53.34 mm
SKU: ABX00087 / KK4006
The Arduino UNO R4 WiFi merges the RA4M1 microprocessor from Renesas with the ESP32-S3 from Espressif, creating an all-in-one tool for makers with enhanced processing power and a diverse array of new peripherals. With its built-in Wi-Fi and Bluetooth capabilities, the UNO R4 WiFi enables makers to venture into boundless creative possibilities. Furthermore, this versatile board boasts a convenient on-board 12x8 LED matrix and a Qwiic connector, offering ample space for innovation and unleashing creativity. This dynamic combination empowers makers to transform their ideas into reality and elevate their projects to unprecedented heights.
Tech specs
Board
- Name Arduino UNO R4 WiFi
- SKU ABX00087
Microcontroller Renesas RA4M1 (Arm Cortex-M4)
USB USB-C Programming Port
Pins Digital I/O Pins 14
Pins
- Analog input pins 6
- DAC 1
- PWM pins 6
Communication:
- UART Yes, 1x
- I2C Yes, 1x
- SPI Yes, 1x
- CAN Yes 1 CAN Bus
Power:
- Circuit operating voltage 5 V (ESP32-S3 is 3.3 V)
- Input voltage (VIN) 6-24 V
- DC Current per I/O Pin 8 mA
Clock speed:
- Main core 48 MHz
- ESP32-S3 up to 240 MHz
Memory:
- RA4M1 256 kB Flash, 32 kB RAM
- ESP32-S3 384 kB ROM, 512 kB SRAM
Dimensions
- Width 68.85 mm
- Length 53.34 mm
