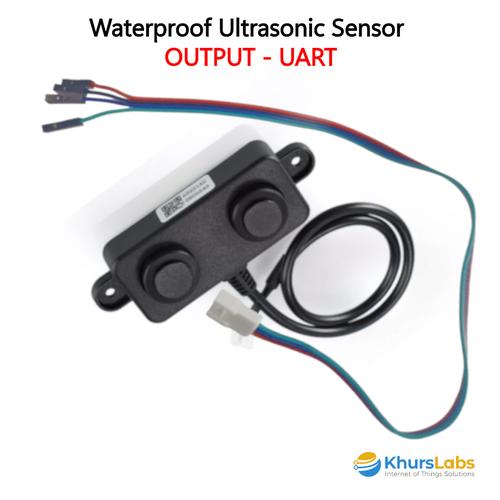

A02YYUW V2 Waterproof Ultrasonic Water Level Sensor
Rp295.000
Pilih warna: 3 warna
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 11 - MODULE AND SENSOR
ππππ: πππππ ππππππππ πππππ ππππ ππππππππ ππ ππππ ππππππ πππππππππ
Code: A02YYUW - V2
SKU: KB5006
INTRODUCTION
Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring much smaller blind zone, wider sensing angle and a certain penetration power(smog, dust) compared with other similar sensors .
SPECIFICATION
Operating Voltage: 3.3~5V
Average Current: <8mA
Blind Zone Distance: 3cm
Detecting Range(Flat object): 3-450cm
Output: UART
Response Time:100ms
Operating Temperature: -15~60β
Storage Temperature: -25~80β
Reference Angle: 60ΒΊ
Waterproof Grade: IP67
SHIPPING LIST
A02YYUW Waterproof Ultrasonic Sensor
Sample Code (ESP32):
Sample Code (Arduio & ESP32):
- Self Code: https://drive.google.com/drive/folders/1x58ZogBl2NuIUJD9ZqvTQ7JsixctM40V?usp=drive_link
Dfrobot Code: https://wiki.dfrobot.com/_A02YYUW_Waterproof_Ultrasonic_Sensor_SKU_SEN0311
Datasheet: https://drive.google.com/file/d/1GCxA09GD8WqYYmHechjk5hhYPHWpjaoY/view?usp=sharing
Code: A02YYUW - V2
SKU: KB5006
INTRODUCTION
Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring much smaller blind zone, wider sensing angle and a certain penetration power(smog, dust) compared with other similar sensors .
SPECIFICATION
Operating Voltage: 3.3~5V
Average Current: <8mA
Blind Zone Distance: 3cm
Detecting Range(Flat object): 3-450cm
Output: UART
Response Time:100ms
Operating Temperature: -15~60β
Storage Temperature: -25~80β
Reference Angle: 60ΒΊ
Waterproof Grade: IP67
SHIPPING LIST
A02YYUW Waterproof Ultrasonic Sensor
Sample Code (ESP32):
Sample Code (Arduio & ESP32):
- Self Code: https://drive.google.com/drive/folders/1x58ZogBl2NuIUJD9ZqvTQ7JsixctM40V?usp=drive_link
Dfrobot Code: https://wiki.dfrobot.com/_A02YYUW_Waterproof_Ultrasonic_Sensor_SKU_SEN0311
Datasheet: https://drive.google.com/file/d/1GCxA09GD8WqYYmHechjk5hhYPHWpjaoY/view?usp=sharing
