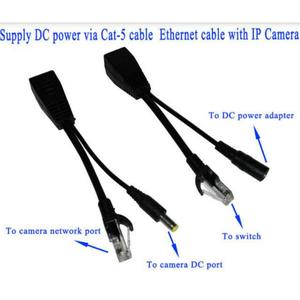

Rj45 injector poe splitter cat 5e adaptor kabel Kit pasif power supply

Description: - DC Input Voltage: UP to 60VDC - DC Output Voltage: UP to 60VDC - Max Output Current 1.5A-2A Max. - Over Current Protection None - Work range:below 50 meters Specification: - Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F) - CASE OF MATERIAL PVC - Ethernet Date Rate 10/100Mbps - Ethernet Cable TIA/EIA 568 Cat.5 - Humidity Up to 90% - Length 175mm - Usage instruction: - 1. It is very simple to connect a passive poe. On the lower part, we connect the Ethernet RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter to the power socket. - 2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end. - 3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect the power connectors and the Ethernet to the powered equipment. The equipment is now connected by them. sepasang
