SpeedyBee F405 V4 BLS 60A 3-6S 30x30mm Stack Flight Controller FC ESC for FPV Drones DJI Vista Link Air Unit O3 - ESC

FC Specifications:
Product Name: SpeedyBee F405 V4  Flight Controller
MCU: STM32F405
IMU(Gyro): ICM42688P
USB Port Type: Type-C
Barometer: Built-in
OSD Chip: AT7456E chip
BLE Bluetooth: Supported.
DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot: *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card.
Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset=0.
Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output: 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.
UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry: UART R5(UART5)
I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
BOOT Button: Supported.
RSSI Input: Supported. Named as RS on the front side.
Smart Port/F.Port: Not supported
Supported Flight Controller Firmware: BetaFlight(Default), INAV
Firmware Target Name: SPEEDYBEEF405V4
Mounting: 30.5x30.5mm(4mm hole diameter)
Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
Weight: 10.5g

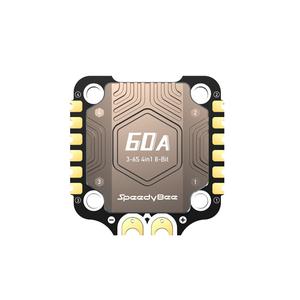

ESC Specification:
BLS 60A 4In1 ESC
Con. Current: 60A*4
Burst Current: 80A (10 Sec.)
Firmware: BLHeli_S J-H-50
PC Configuratior Download Link: https://esc-configurator.com/
TVS Protective diode: YES
External Capacitor: 1000uF Low ESR Capacitor(In the package)
ESC Protocol: DSHOT300/600
Power Input: 3-6S LiPo
Power Output:VBAT
Current Sensor: Support (Scale=400; 0ffset=0)
ESC Telemetry: Not supported
Mounting Hole: 30.5 x 30.5mm( 4mm hole diameter)
Dimension:45.6(L) * 44(W) *8mm(H)
Weight: 23.5g
