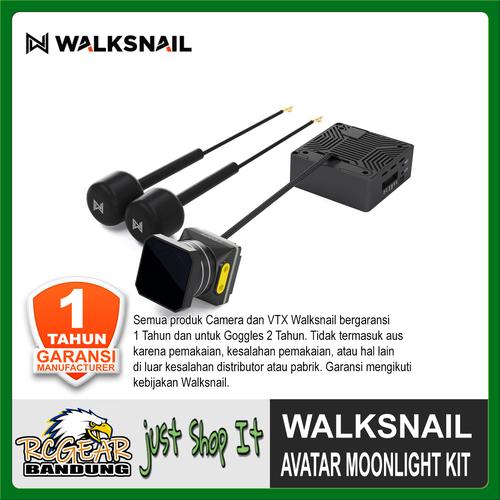

CADDX Walksnail Avatar Moonlight Kit 4K 60FPS HD Digital FPV for Drones
Rp2.500.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Video Transmitter
Specification
Model Moonlight kit
Firmware name AvatarMoonlight_Sky_X.X.X
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
Sensor Starlight sensor
FOV Max 160°
Aperture F2.1
Shutter Rolling shutter
ISO 100-25600
Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
3D DNR Support
Gyroflow Support
Built-in EIS Support
Wide Power Input
7.4V-25.2V
Power consumption 12V@1.4A, 8V@2.2A
Memory card type U3 MicroSD, Max 256G
Camera size 19.6mm*19mm*24mm
VTX size 15.3mm*34.5mm*34.5mm
VTX Installation hole distance 20*20mm/25*25mm (M2)
Weight
38.5g(Antenna not included)
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)
VTX Antenna
model avatar V2 antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR ＜1.5
Input Impedance 50Ω
Interface IPEX-1
Dimension R15 X 45mm （without cable）
Weight 2g
Packing List：
1 x Walksnail Moonlight kit
8 x M2*4mm round head screws
4 x M2*5mm round head screws
4 x M2*6mm round head screws
1 x Double head 0.8mm*6PIN (4 wires)
1 x 4PIN silicone cable
1 x Quick Start Guide
Model Moonlight kit
Firmware name AvatarMoonlight_Sky_X.X.X
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
Sensor Starlight sensor
FOV Max 160°
Aperture F2.1
Shutter Rolling shutter
ISO 100-25600
Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
3D DNR Support
Gyroflow Support
Built-in EIS Support
Wide Power Input
7.4V-25.2V
Power consumption 12V@1.4A, 8V@2.2A
Memory card type U3 MicroSD, Max 256G
Camera size 19.6mm*19mm*24mm
VTX size 15.3mm*34.5mm*34.5mm
VTX Installation hole distance 20*20mm/25*25mm (M2)
Weight
38.5g(Antenna not included)
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)
VTX Antenna
model avatar V2 antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR ＜1.5
Input Impedance 50Ω
Interface IPEX-1
Dimension R15 X 45mm （without cable）
Weight 2g
Packing List：
1 x Walksnail Moonlight kit
8 x M2*4mm round head screws
4 x M2*5mm round head screws
4 x M2*6mm round head screws
1 x Double head 0.8mm*6PIN (4 wires)
1 x 4PIN silicone cable
1 x Quick Start Guide
