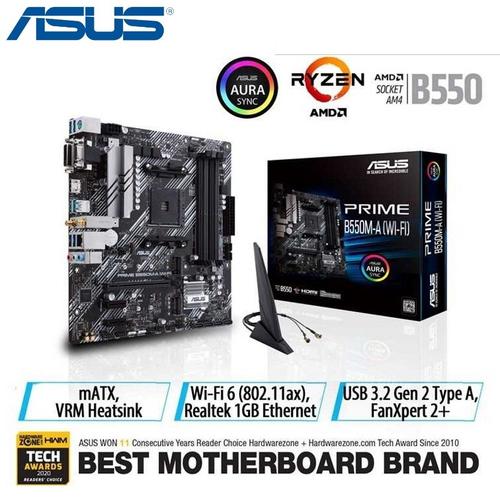

ASUS PRIME B550M-A WIFI II - AMD Motherboard Socket AM4

NOTE : SEBELUM DI ORDER DIHARAPKAN DISKUSI UNTUK CHECK STOCK BARANG TERSEBUT, TERIMA KASIH ATAS PERHATIAN NYA

CPU
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.

Chipset
- B550

Memory
- 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
- Dual Channel Memory Architecture
* ECC memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.

Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
- 1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
- 1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
- 2 x PCIe 3.0 x1

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
- AMD Ryzen 4000 G-Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10

Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2

Form Factor
- micro ATX
- 24.4cm x 24.4cm
