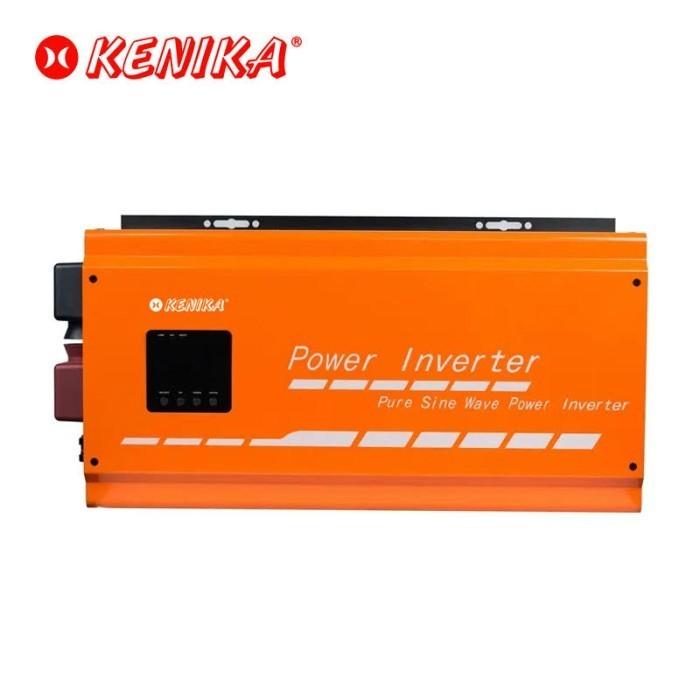

KENIKA SOLAR POWER INVERTER PURE SINE WAVE 3000W-48V DC [KCT-3K48]

GARANSI 1 TAHUN RESMI KENIKA

Power Inverter ini cocok untuk backup darurat saat terjadi pemadaman listrik dengan transfer time 8ms, atau dapat digunakan juga sebagai sistem off-grid standalone.


Specifications :
MODEL : KCT-3K48


*AC INPUT
Voltage Range : 220VAC (+25%)
Frequency Range : 50/60Hz ± 2.5Hz


*OUTPUT
Wave Form : Pure Sine Wave
Battery Efficiency : 83%
AC Efficiency : 93%
Output Voltage : 220VAC (AC Mode ± 10%, Battery Mode ± 5%)
Output Frequency : 50Hz/60Hz ± 0.5Hz (AC Mode ± 2.5Hz)
Transfer Time : 4ms/8ms Optional
USB Output : DC 5V/1A x1, 5V/2A x1 (Optional)


*CONNECTOR
Input/Output : Input & Output Terminals
Battery : Terminals


*BATTERY
Voltage : 48VDC
Charging Current : 1-60A Adjustable


*LCD
Method : LCD+LED
Content : Input/Output Voltage, Battery Voltage, Battery Capacity, Load Capacity, Working Mode, Frequency


*PROTECTION
Battery Reversal : Optional
Output Short Circuit : AC Mode: Jump Fuse, Inverter Mode: Shut Down
Overload : If Overload 105%, Inverter will Alarm. If Overload 130%, Inverter will shut down in 10s. Once the inverter is off, it must be turned on manually.
High AC Voltage : Turn off AC, Turn to Inverter Mode Automatically
Low DC Voltage : Inverter will shut down automatically, Once the AC recover, Inverter will turn on and change automatically
Over Temperature : Inverter will alarm and turn off output but it will recover to normal state after cooling down


*ENVIRONMENT
Humidity : 15-93% (No Condensation)
Temperature : -10° ~ 50°C


*MECHANICAL SPECIFICATIONS
Machine Dimension (D x W x H) : 550 x 295 x 205 mm
Nett. Weight : 25.8 Kg/pc
Gross Weight : 27.3 Kg/pc
