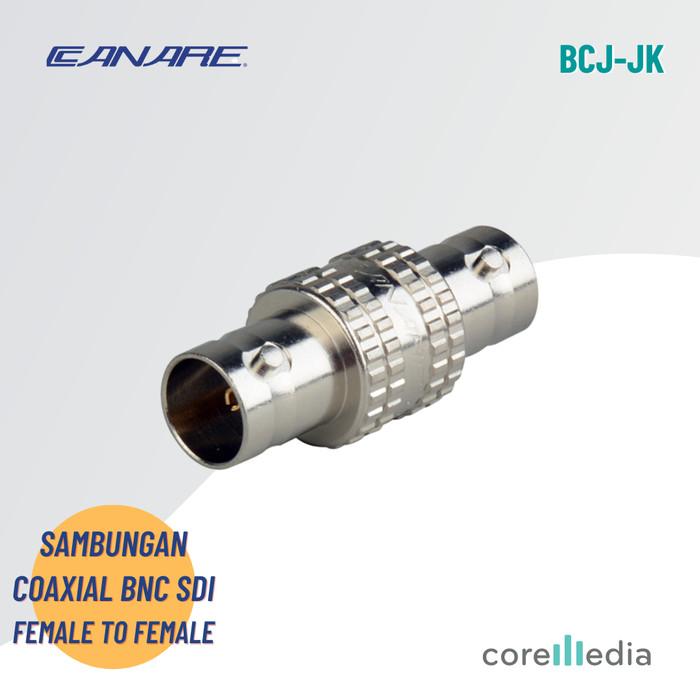

Sambungan Kabel Coaxial Bnc Sdi Female To Female Canare Bcj-Jk

Untuk pemilihan warna, ukuran atau type bisa ditulis di catatan ya, Terimakasih Sambungan Kabel Coaxial BNC SDI Female to Female Canare type BCJ-JK 75 Ohm untuk konektivitas yang ditingkatkan dan mendukung 12G-SDI berfungsi untuk menyambungkan dua kabel coaxial connector BNC Male. Product Highlights: - Supports 12G-SDI - Gold-Plated Contacts - Connects Two Male BNC Cables Feature: - Compatible with 12G-SDI - Gold-plated beryllium-copper center contact for enhanced spring characteristics - Return loss of ≥26 dB at 3 GHz and ≥15 dB at 12 GHz Specifications : 1. Electrical characteristics - Insulation resistance: 1000MΩ or more - Contact resistance: Between center contacts: 6mΩ or less / Between external contacts: 3mΩ or less - Return loss: 26dB or more(0 ~ 3GHz) / 20dB or more(0 ~ 6GHz) / 15dB or more(0 ~ 12GHz) - Nominal impedance 75Ω unbalanced 2. Mechanical characteristics - Intermatability: To be engaged without any abnormality - Female contact retention force: 1.5 ~ 3.9N - Fixing force of contact with lock mechanism: No displacement more than 0.5 mm - Strength of coupling mechanism: Body shall not be disconnected or no deformation shall be made - Attachment strength: There shall be no break or damage on each part of connector. - Mechanical operation (repeated): Contact resistance 10m Ω or less 3. Environmental characteristics - Corrosion resistance (Salt Mist): 50mΩ or less - Operating temperature: -40°C ~ +85°C - Operating humidity: ~ 90%
