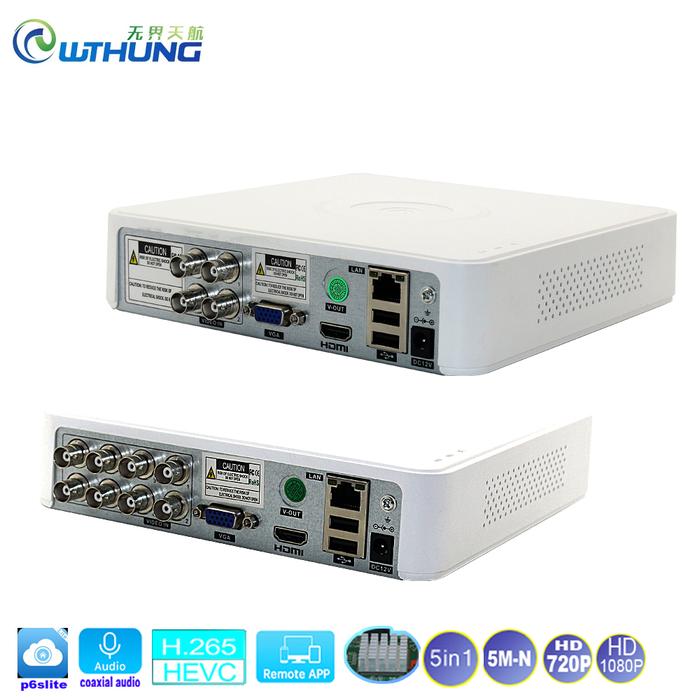

5 in 1 mode Coaxial DVR CCTV 4CH/8 Channels 5M-N P2P Intelligent for 5MP 12.5Fps 1080P 720P TVI CVI CVBS Camera 5MP IP Onvif Cam

SELAMAT DATANG DI TOKO KAMI

Brand Name : WUSONGLUSAN
Model Number : RS-BH-2708K
Technology : analog,AHD,HDCVI,HDTVI,Network
Origin : Mainland China
Certification : none
HDD Capacity : None
Compression Format : H.265,H.264
Video Input Interface : BNC (1.0 Vp-p, 75)
Audio Input : 4 Channel,8 Channel
Audio Compression Format : G711A
Video Standard : NTSC/PAL
Video Resolution : 5MP
Video Output : 1VGA + 1HDMI-Compatible
Audio Output : None
Video Adjustment : Brightness Adjustable
Hard drive Interface Type : SATA
Hard Drive Size : 3.5''
Network Interface : RJ45 10/100M
Communication Interface : none
Network Protocol : DHCP
Wireless Security : wep
IP Mode : Dynamic IP address
Supported Mobile Systems : iPhone OS,Android,Symbian,Windows Mobile
Supported Operating Systems : Microsoft Windows 98,Microsoft Windows ME,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7,Mac OS
Backup Type : Hard Drive
Alarm Action : Email Photo
Two-way Audio : no
e-Cloud(P2P) : YES
DVR Power Supply : DC12V
Smart home platform : other
Hign-concerned Chemical : None


1.Please note that this DVR does not require a password by default and can be accessed directly from the DVR main menu. There is no password, but we suggest that you set a password later. If you forget your password, you can click on Forget Password and a QR code will appear. Using the APP: P6lite to scan the QR code, a temporary super password will appear. Use it to enter the main menu and then change the new password.
camera PAL/NTSC It will be automatically recognized, so you don't have to worry that your camera is in NTSC format and cannot be displayed on PAL's DVR

This video show how to enter DVR by computer

What is coaxial Audio

it is mean camera which support coaxial audio connect to DVR which support coaxial too,can No need other device can hear voice from camera by Smartphone or Computer

How to connect camera to this DVR

Channel typeyou can set the channel type to make the DVR suitable for you)

4CH 5MN

8CH 5M-N

Language

Main display
4CH

8CH

H.265+(can save a lot of Hdd storage than H.264)

Display resolution

(the board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input.
or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported"you can ask US help to change the display resolution before send goods)

Features:

5 in 1 HVR product solution, supports HD analog video coding, HD analog + HD

network video input, and pure HD network video input

Support VGA,HDMI output;

Support a variety of cloud technologies, realize network penetration for camera

and DVR docking, and support the functions of pushing alarm information to

mobile phones

Support remote access, DDNS to realize one-key remote monitoring;

With UTC function, camera menu parameters can be adjusted via UTC function;

Support H.264/H.265(HEVC) IP camera

Support IP camera address modifying in bulk, and camera device added remotely;

Support AHD/TVI/CVI/CVBS/IP 6-in-1 and self-recognition

Can connect with mainstream IP camera brands in the market(private protocol or

Onvif);

Support other third-party products based on ONVIF2.4 (IP mode);

Support VGA,HDMI simultaneous display,Max resolution is up to HDMI 1080P.

Record playback can be shown by time, record type showed by color, to search

and retrieve conveniently and efficiently;

Record backup can be arranged according to the time and duration, accurate to

seconds;

Preview screen can be exchanged randomly. Picture position changed without

physical address changing, it's convenient for construction

Support multiple languages

Provide mating Web ,CMS SDK service;

Support multiple playback modes: fast forward, slow playback, fast reverse, etc.

Max 16 times fast forward or fast reverse

Product parameters

4 channels

System Main processor MC6630

Operation system Embedded LINUX operation system

System resources Multichannel real time record

Multichannel real time playback

multichannel multi-user on network operation

Interface Operation system graphic menu operation interface, support mouse to operate

Image display 1/4/6/9/16 screen

Video Image coding H.264/H.265

Surveillance quality VGA(Max 1080P)HDMI(Max 1080P), CVBS optional

Preview 4*5MP-N@20fps/4*4MP-N@25fps/4*1080P@25fps

Code capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080P@15fps

Decode capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080P@15fps

Various mode input Coaxial: 4*5MP-N

Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode

IP: 8*5MP, 16*5MP for all IP mode

Recognize method Automatic Identification All AHDAll TVI All CVI Customized

Motion detection 192 16*12 testing areas can be set for each image

can set multi-sensitivity (only for local channel and P6S IP camera)

Audio Audio compression G.711A

Audio
