Vibration Meter Smart Sensor AR63B Gauge Tester Digital Vibrometer

- Original brand Smart Sensor - Sertifikat Kalibrasi termasuk (bukan tanpa sertifikat)

- Dikirim dari Jakarta dengan kardus utk keamanan produk
- Semua produk kami bergaransi distributor Jakarta


Alat ukur getaran dari Smart Sensor
Mendapatkan sertifikat kalibrasi

Mengukur:
Acceleration: 0.1~199.9m/s²
Velocity: 0.1~199.9m/s
Displacement: 0.001~1.999mm


==
✦ FUNCTIONS---Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery, specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
✦ ACCURATE MEASUREMENT---The vibrometer use the high-performance acceleration meter, realize the repetitiveness and accurate measurement.It has the function of testing axle bearing situation.
✦ WORKING PRINCIPLE---Vibration meter(also called also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.
✦ WIDE APPLICATION---Widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
✦ FEATURES---Multi-functional, with temperature measurement, auto switch range, backlight, auto power off.


Specification:
Vibration Pickup: Piezoelectric Ceramic Accelerometer(shear-type)
Acceleration: 0.1~199.9m/s²
Velocity: 0.1~199.9m/s
Displacement: 0.001~1.999mm
Acceleration Frequency Range: 10HZ~1KHZ(LO); 1KHZ~15KHZ(HI)
Velocity Frequency Range:10HZ~1KHZ
Displacement Frequency Range:10HZ~1KHZ
Accuracy: ±5%H±2digits
Power: 9V DC battery
Size:70 * 35 * 100mm / 2.8 * 1.4 * 3.9in
Weight: 1000 g / 35.3 oz(approx.)

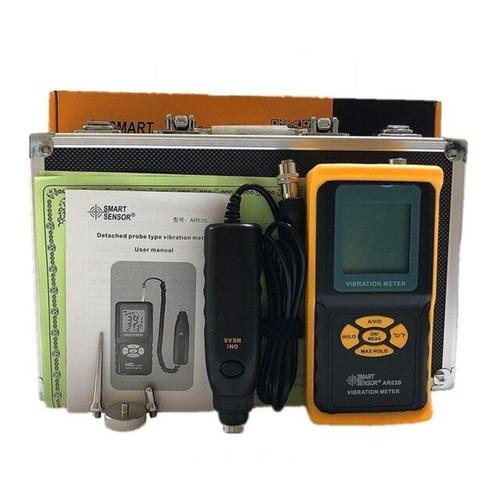

Package list:
1 x Vibration Analyzer Tester
1 x instructions
3 x probe
1 x Aluminum case
1 x Split probe


- Dikirim dari Jakarta dengan kardus utk keamanan produk
- Semua produk kami bergaransi distributor Jakarta
