4-Channel DC Motor Driver Module Breakout Shield Expander Expansion Board HAT for Raspberry Pi Pico RP2040 PWM Driver Board Acce

Brand Name : SHCHV
Origin : Mainland China
Accessory Type : Extension Board
Compatible With : Raspberry Pi Pico
DIMENSIONS : 65 x 56mm


DC Motor Driver Module For Raspberry Pi Pico, Driving Up To 4x DC Motors
DC Motor Driver ModuleFor Pico

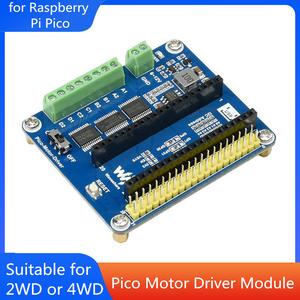

Suitable For 2WD Or 4WD Driving

Features At A Glance
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers

Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed

Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating

Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal

Breakout unused pins of Pico for easy extension

Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications
OPERATING VOLTAGE

6~12V (VIN terminals)

LOGIC LEVEL

3.3V

PWM DRIVER

PCA9685

MOTOR DRIVER

TB6612FNG

CONTROL INTERFACE

I2C

DIMENSIONS

65 56mm

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Driving Up To 4x DC Motors

for reference ONLY,Raspberry PiandDC motorsare NOT included.

Onboard 5V Regulator

Pinout Definition

Outline Dimensions

WIKI:
Pico-Motor-Driver

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Content:

NOT include Raspberry Pi Pico.

Weight:
0.027 kg

Pico-Motor-Driver x1
